Beam Analyzer Measurement Device | Distributor

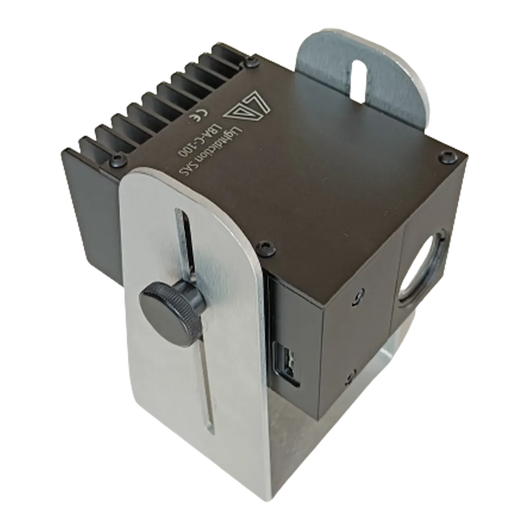

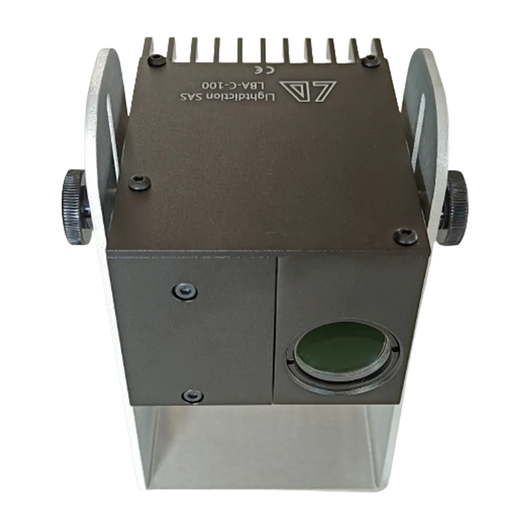

The Beam Analyzer is an award-winning device that allows you to measure the beam specifications of laser light show projectors up to 100W with incredible accuracy. The Beam Analyzer is essentially a “lie detector” that helps you determine if your laser’s beam specifications are correct or not.
The Beam Analyzer allows you to measure in real time:
- Beam Divergence
- Beam Alignment (X*Y mrad)
- Power Output
- Lens collimating of laser sources
Product videos
Specifications
Optical power [Popt]
Min: 0.1 | Typ: - | Max: 100 | Unit: W
Power measurement accuracy
Min: - | Typ: - | Max: 1 | Unit: %
Resolution on divergence [RΦ]
Min: - | Typ: 0.01 | Max: - | Unit: mrad
Divergence measured (FWHM) [Φ]
Min: 0.1 | Typ: - | Max: 10 | Unit: mrad
Input beam diameter [D]
Min: - | Typ: - | Max: 22 | Unit: mm
Wavelength detected [λ]
Min: 400 | Typ: - | Max: 1000 | Unit: mm
Length x Width x Height (without the support / handle) [mm]
100 x 75 x 57
Weight [g]
500
Typical consumption (USB 3.0) [W]
2
