ELITE 20 PRO FB4 IP65

ELITE 20 PRO (IP65)

Full-colour, Semiconductor diode laser system

>20W

Lighting professionals: arena sized venues (up to 30,000 people), outdoor shows. Beam show, text, graphic, and mapping capable

Pangolin FB4 DMX [Ethernet, ArtNet, DMX, sACN | PC, Lighting Console, Auto Mode, Mobile App: Apple, Android]

35,000 Points per second @ 8°

45°

Fully complies with the latest EN 60825-1 and FDA regulations

15.5kg

Laser projector w/ FB4 DMX, IP65 housing, protective case, Estop box, Estop cable (10M/30ft), ethernet cable (10M/30ft), power cable (1.5M/4.5ft), interlock, keys, outdoor RJ45 connectors, manual, quickstart guide, variance card (* service dongle if outside US)

6,400 | 6,400 | 8,000

638nm | 525nm | 450nm

6 x 6

<1.2mrad [Full Angle]

Analog 100kHz

100-240V/50-60Hz

Max. 400W

(-10°C)-45°C

IP65

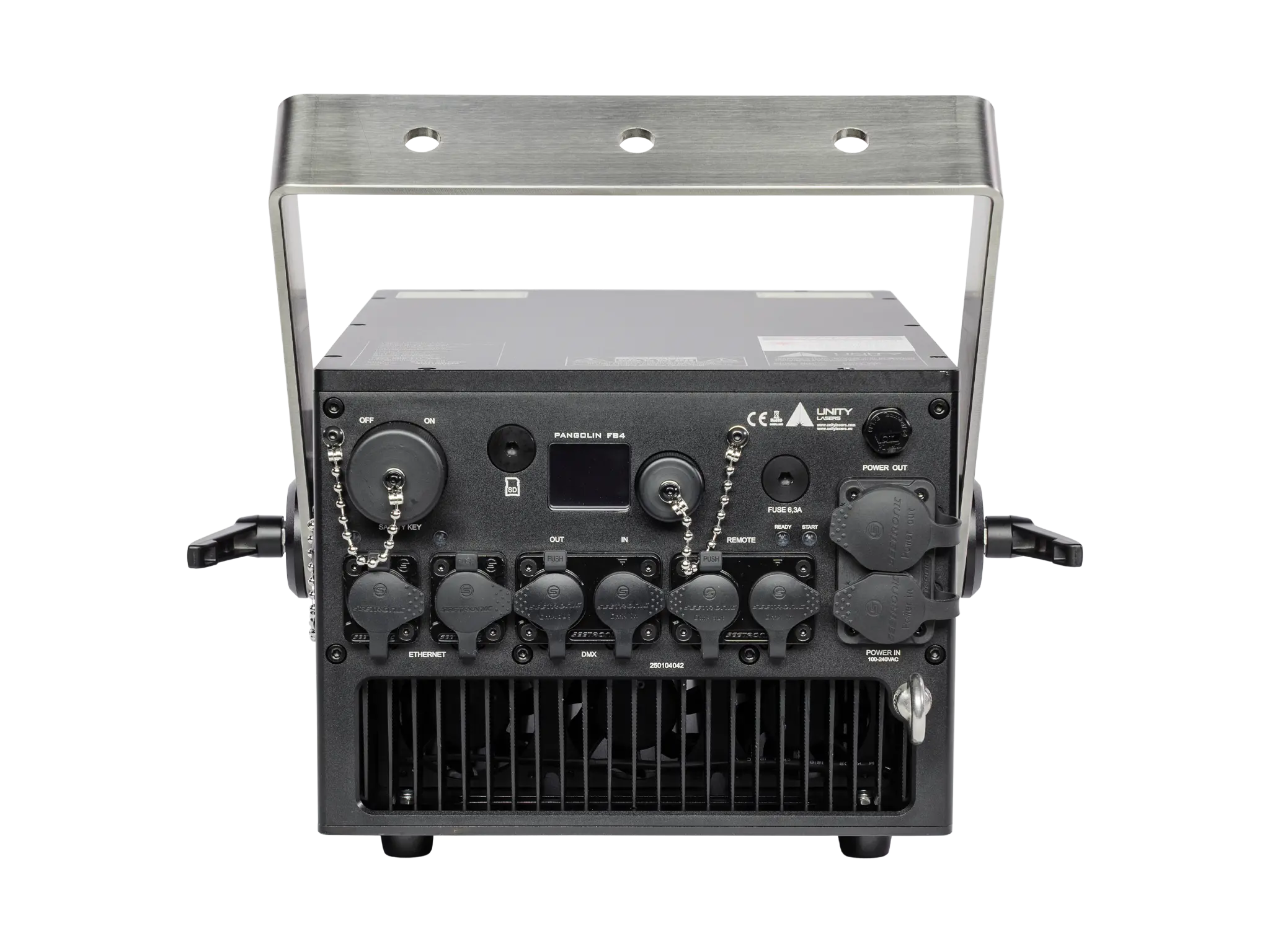

All the adjustments, such as power output of each color, X & Y axes invert, X & Y size and position, safety, etc., are managed digitally by the FB4 control system. Ethernet in/out, power in/out, DMX in/out, Estop in/out

Keyed interlock, Emission delay, Magnetic interlock, Scan-fail safety, Mechanical shutter, Adjustable aperture masking plate.

*Due to the Advanced Optical Correction technology used in our laser systems, each laser colour's optical power output may slightly differ from the specification of the respective laser module(s) installed. This does not affect the total guaranteed power output.

Length: 395 | Width: 338 | Height: 191
