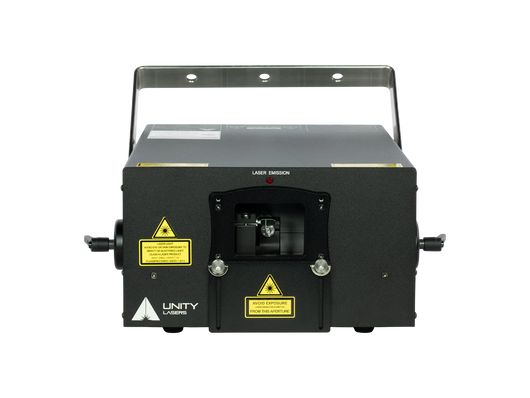

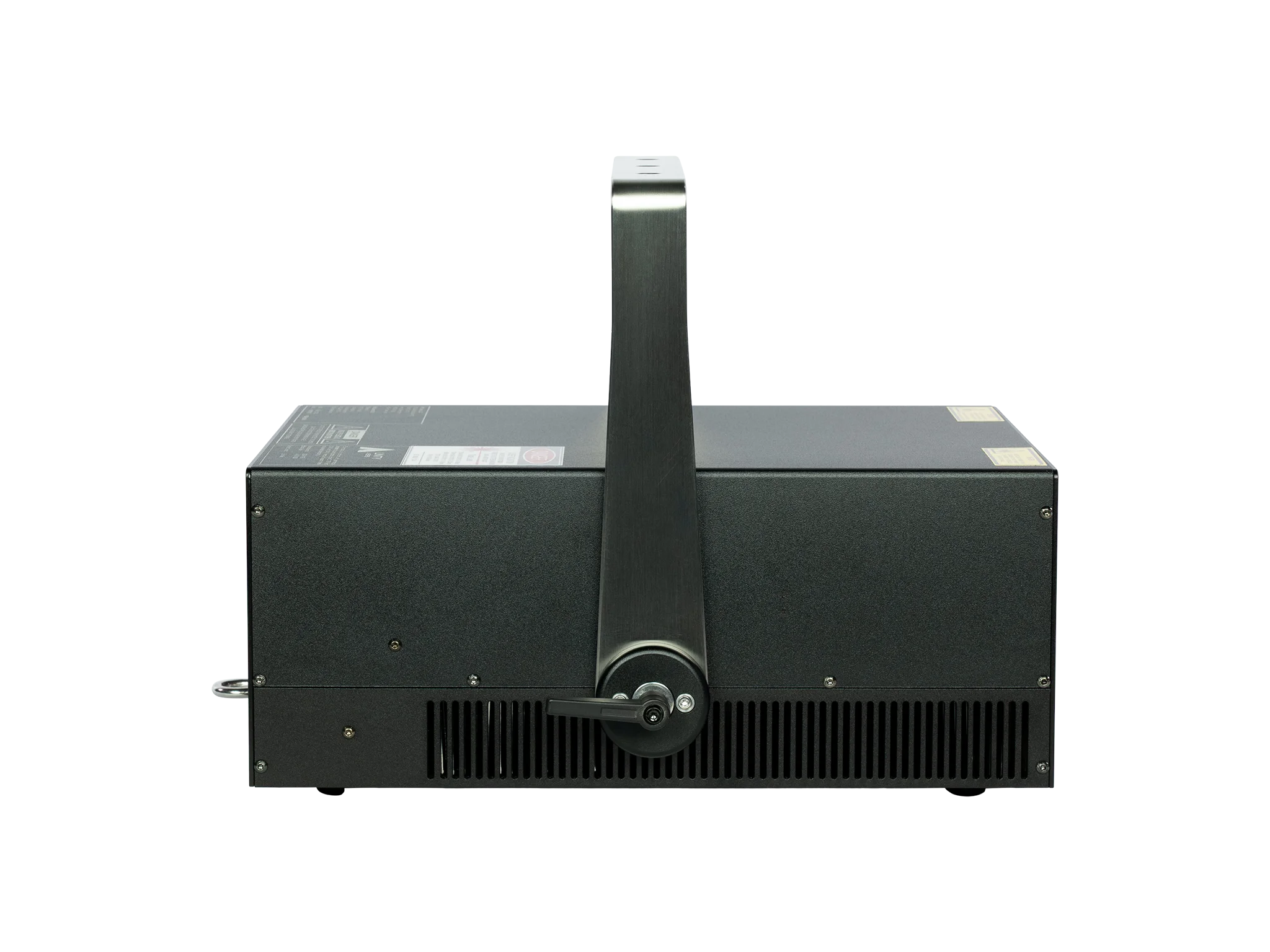

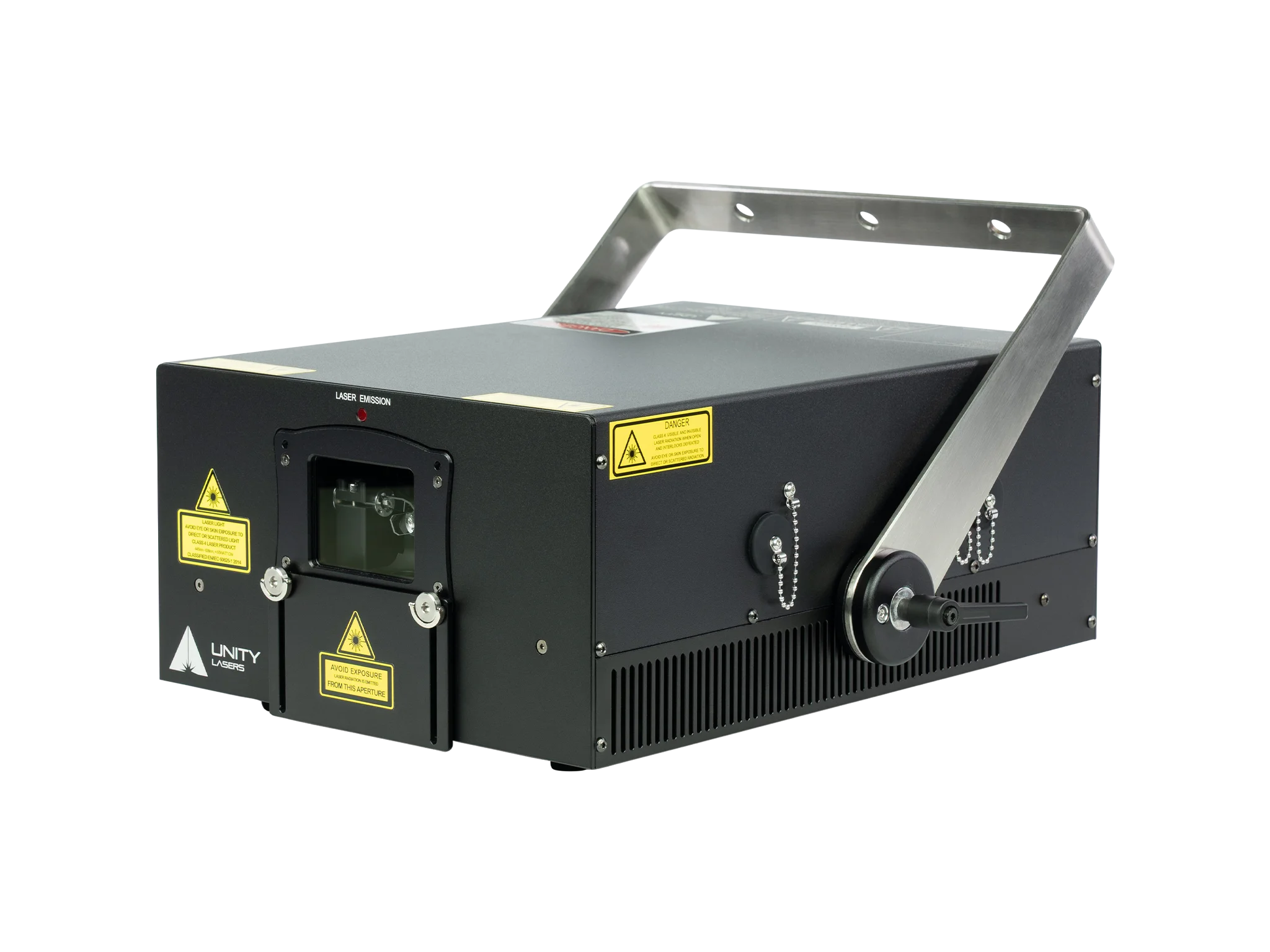

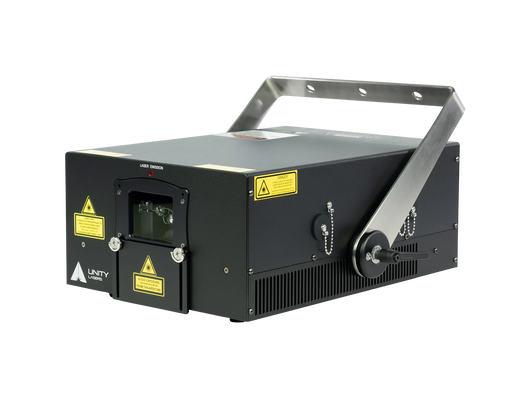

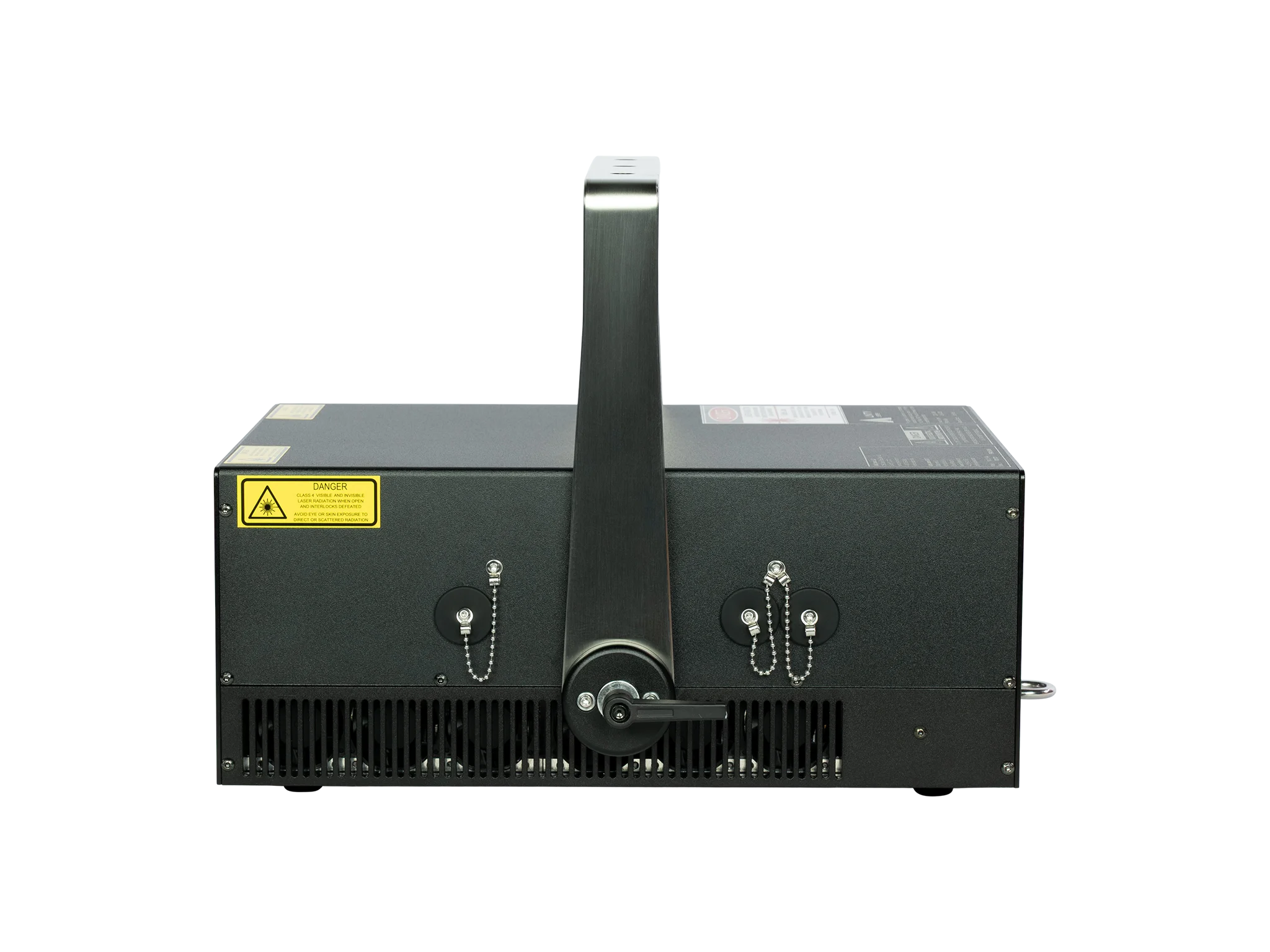

RAW 10 FB4
The Unity RAW FB4 is a high-impact, budget-friendly laser light show projector designed for lighting professionals who want full control without the premium price tag.
With built-in FB4 hardware, you unlock powerful features like direct control via DMX, ArtNET, and ILDA, making it easy to integrate with any lighting console or control setup. And to make your workflow even smoother, it comes with Pangolin’s QuickShow software included — at no extra cost.
Available in power levels from 3W to 10W, the RAW FB4 is ideal for clubs, theaters, and small arenas. It’s everything you’d expect from a pro-level system, in a more accessible package.
Product videos
Specifications
RAW 10 FB4
full-color, semiconductor diode laser system
>10 W
Clubs, DJs, large indoor venues (over 5,000 people), medium sized outdoor shows. Beam show, text, graphic, and mapping capable
Pangolin FB4 DMX [Ethernet, ArtNet, DMX, sACN, ILDA out | PC, Lighting Console, Auto Mode, Mobile App: Apple, Android]
30 Kpps @ 8°
50°
Fully complies with the latest EN 60825-1 and FDA regulations
12 kg
Laser projector w/ FB4 DMX, protective case, Estop box, Estop cable (10M/30ft), ethernet cable (10M/30ft), power cable (1.5M/4.5ft), interlock, keys, manual, quickstart guide, variance card (* service dongle if outside US)
2.7 W | 2.7 W | 4.8 W
638 nm | 525 nm | 455 nm
5 mm x 3 mm
<1.1 mrad [full angle]
Analog, up to 50 kHz
100-230 VAC 50/60 Hz
max. 350W
10 - 40 °C
IP4X

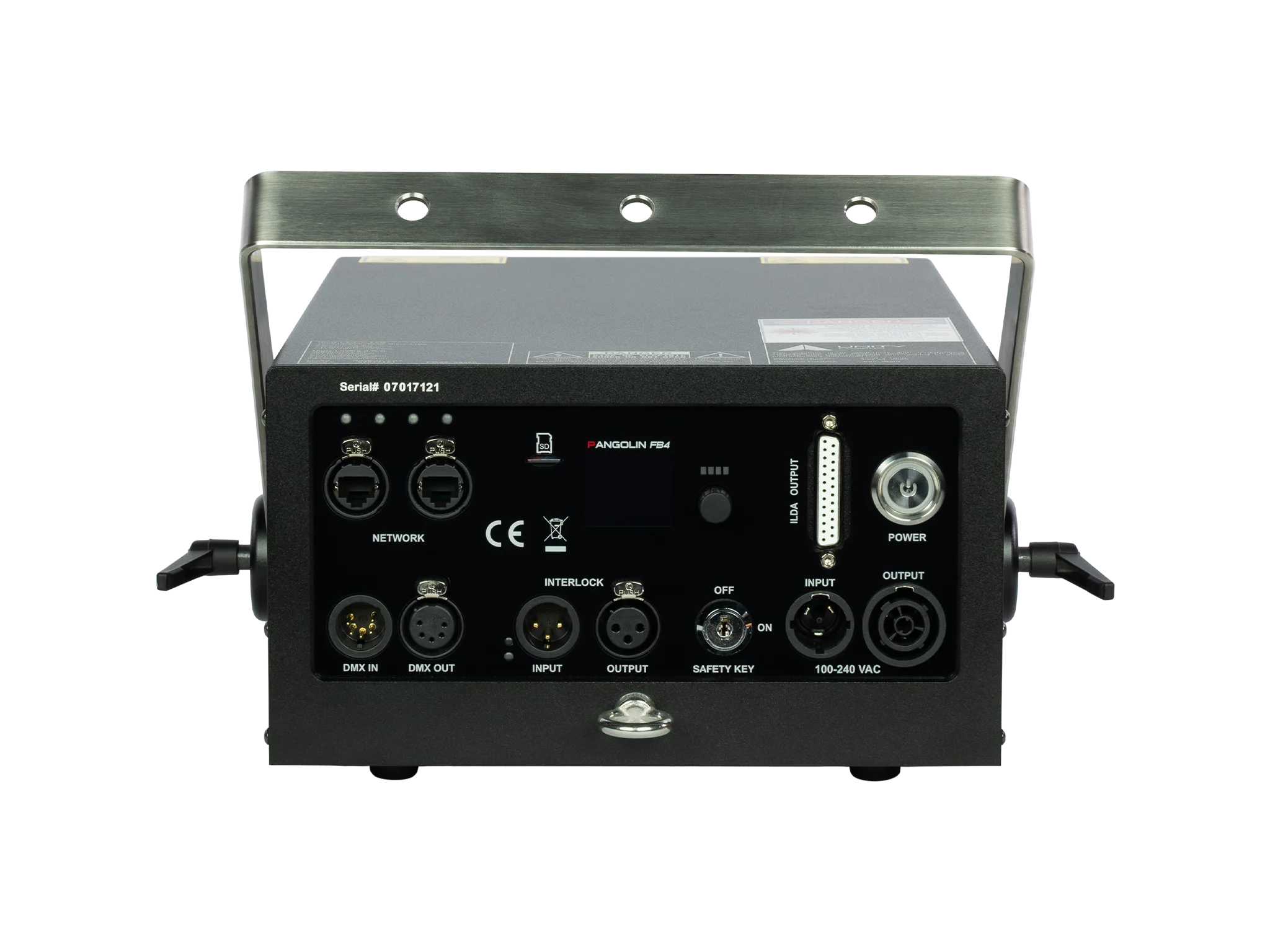

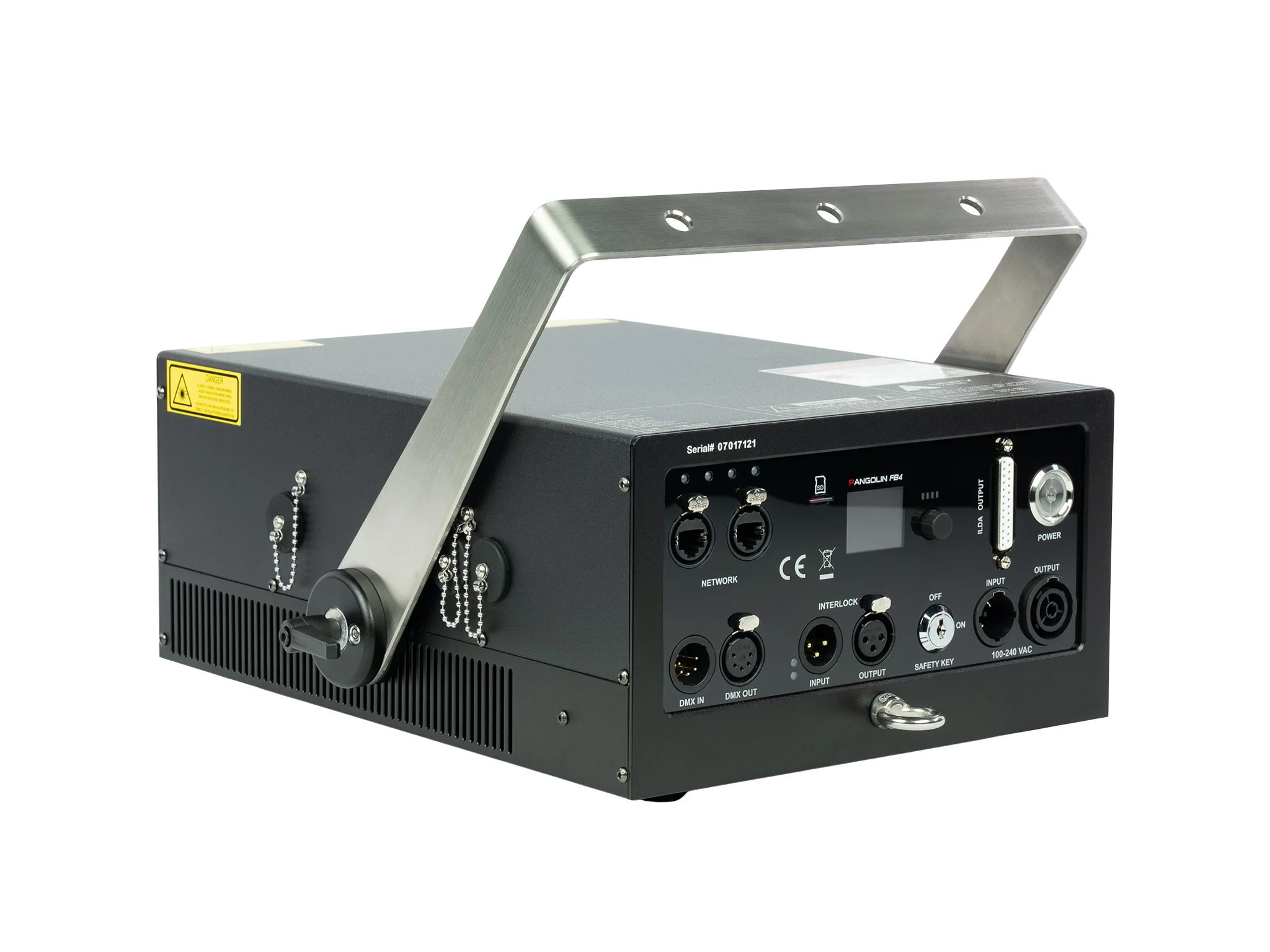

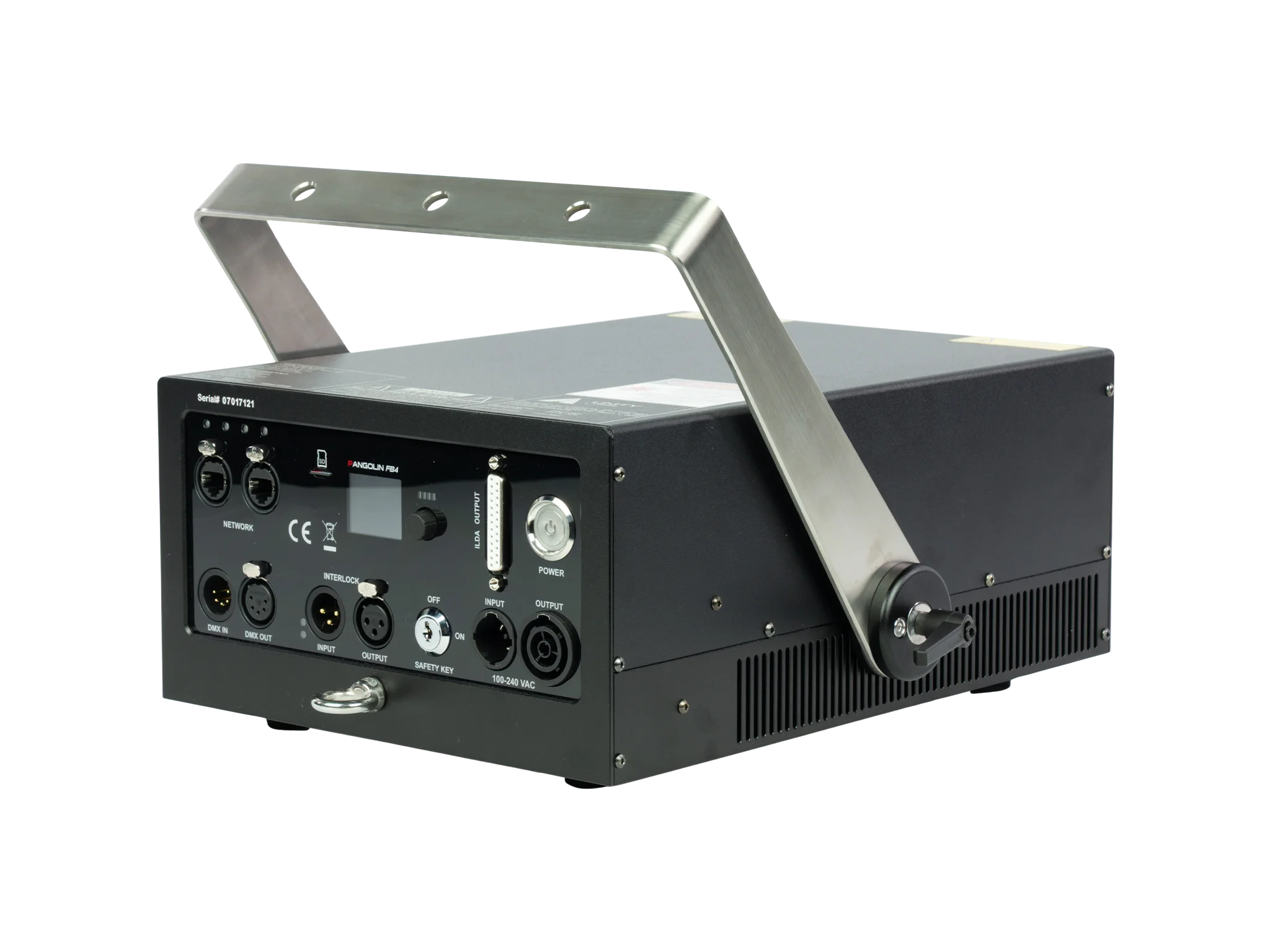

All the adjustments, such as power output of each color, X & Y axes invert, X & Y size and position, safety, etc., are managed digitally by the FB4 control system. Ethernet in/out, power in/out, DMX in/out, Estop in/out, ILDA out
Keyed interlock, emission delay, magnetic interlock, scan-fail safety, mechanical shutter, adjustable aperture masking plate.
*Due to Advanced Optical Correction technology used in our laser systems the optical power output of each laser colour within the system may slightly differ from the specification of respective laser module(s) installed. This does not affect the total guaranteed power output.
Depth: 340 mm | Width: 247 mm | Height: 148 mm
Included with
Laser projector
Laser control software
Protective case
E-stop
E-stop cable
Ethernet cable
Power cable
Safety interlock
Safety keys
Manual
Variance card
