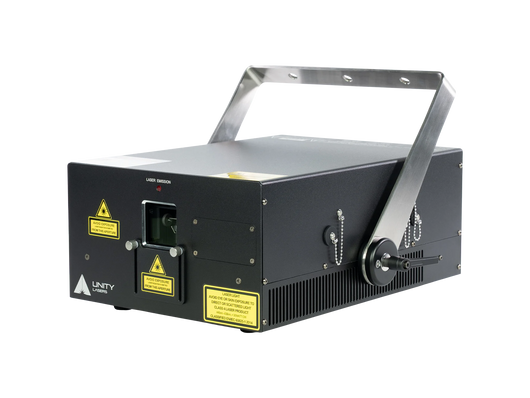

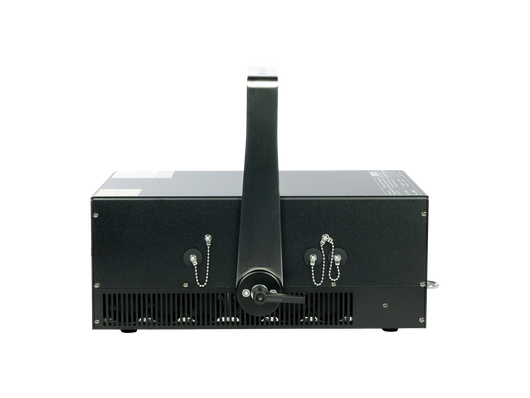

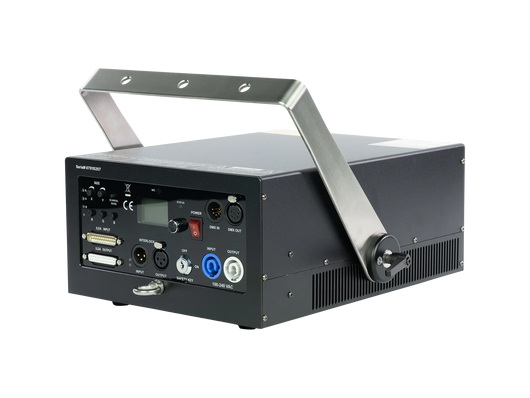

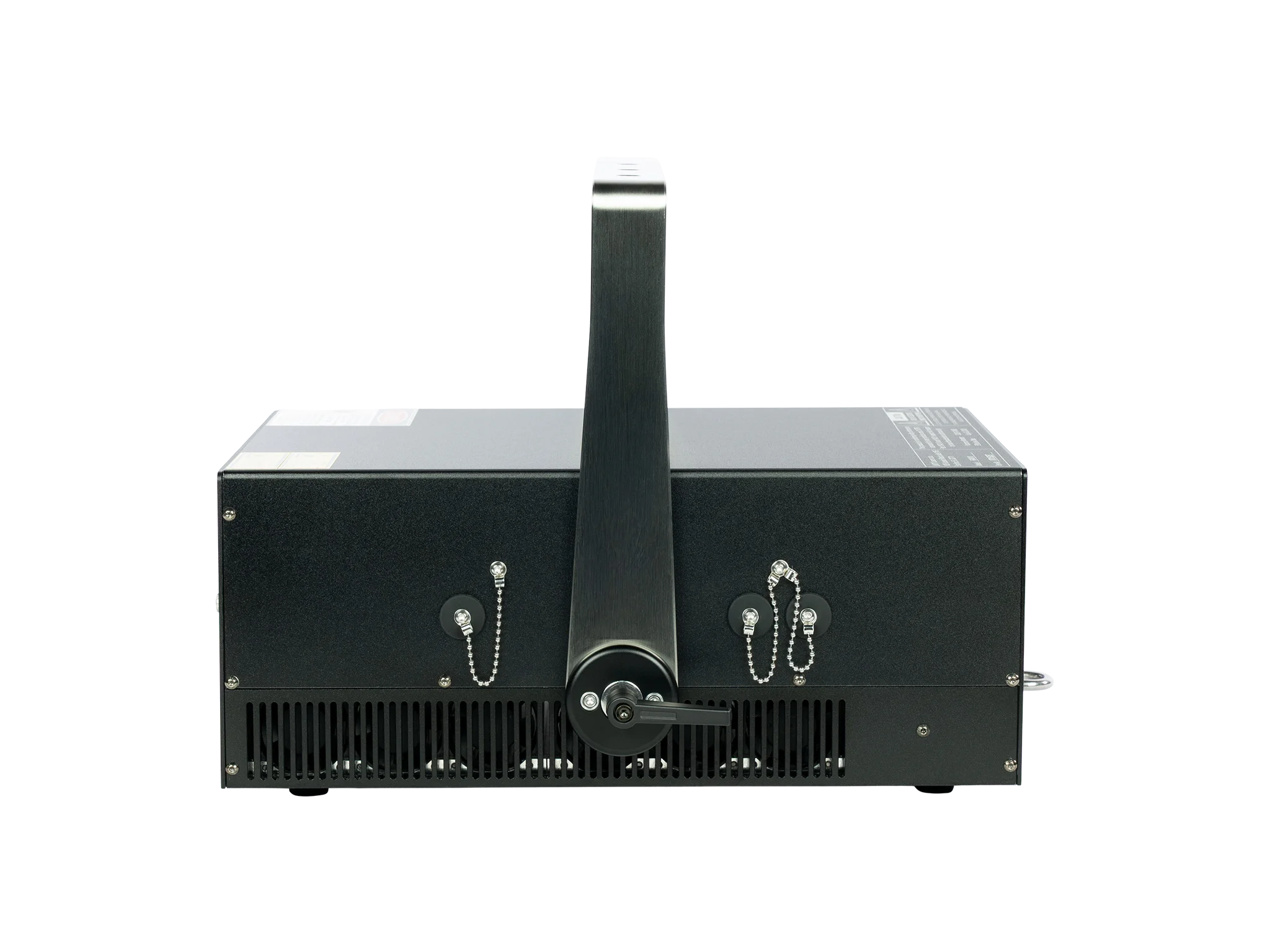

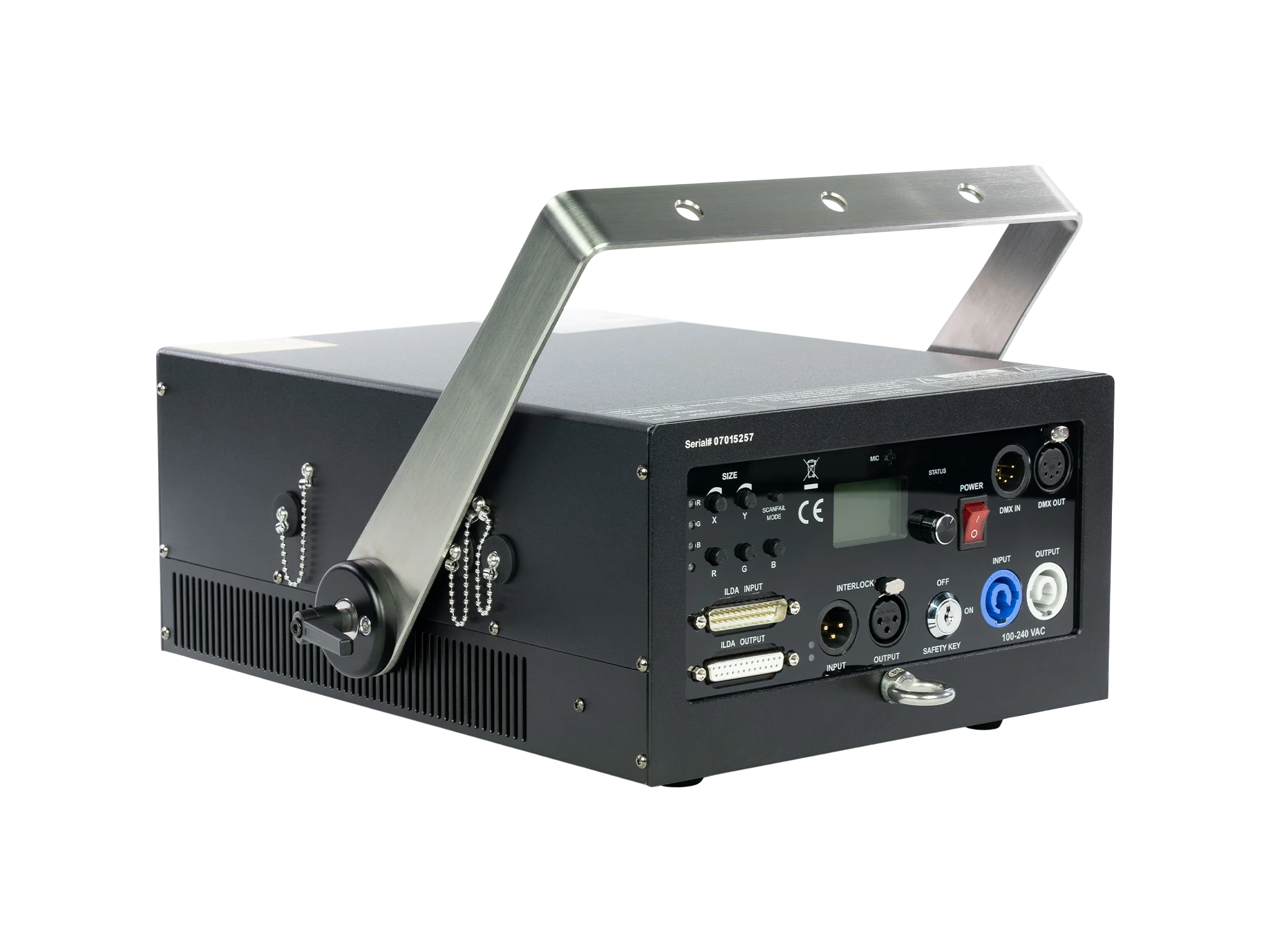

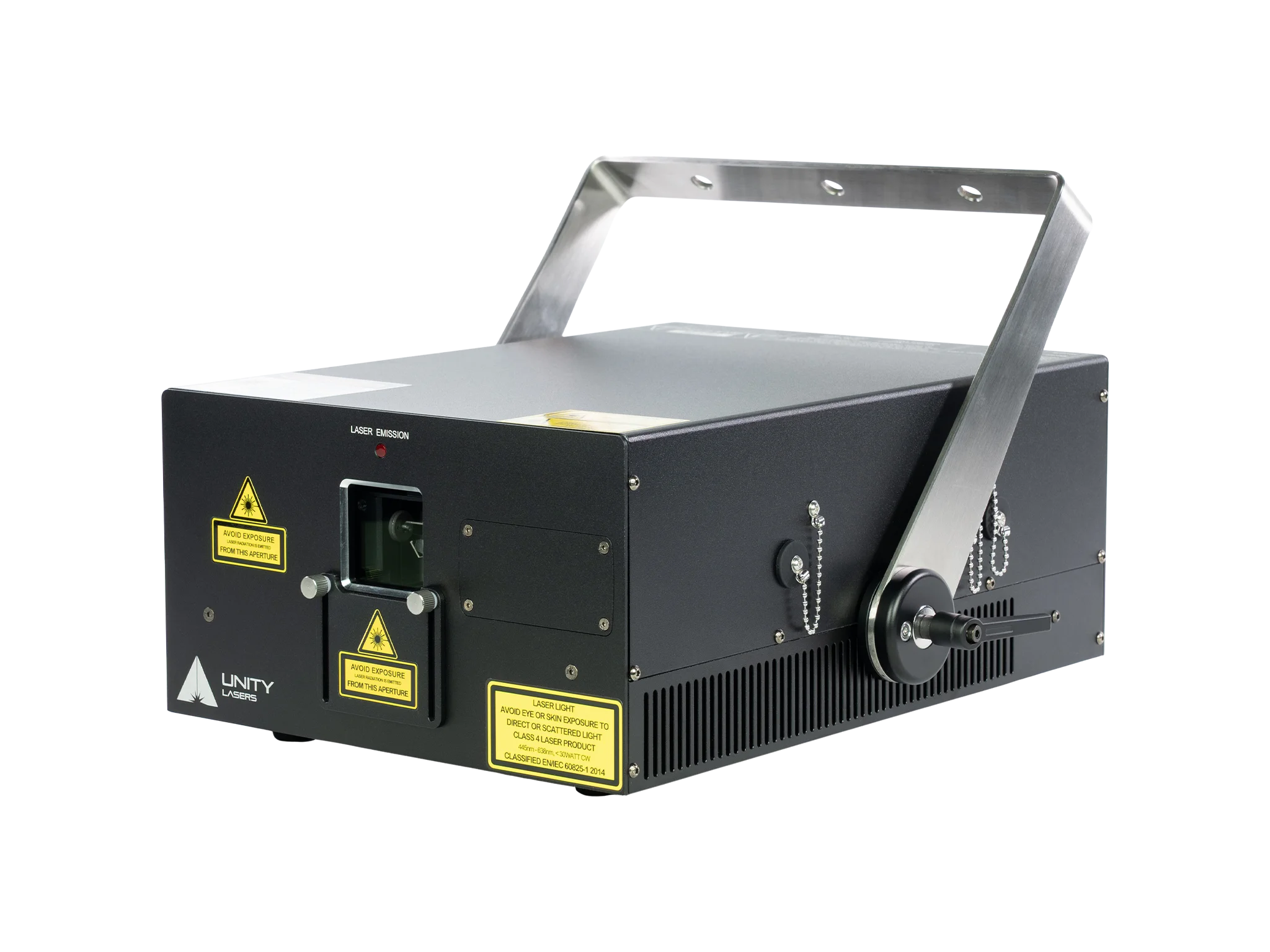

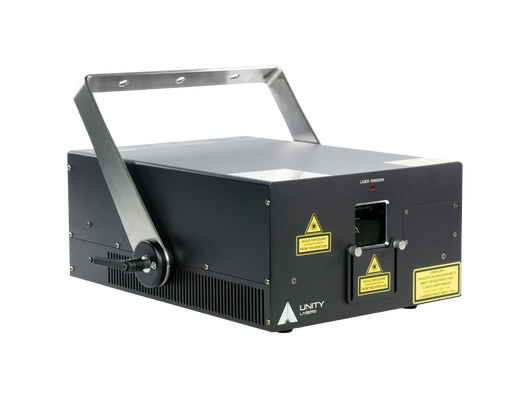

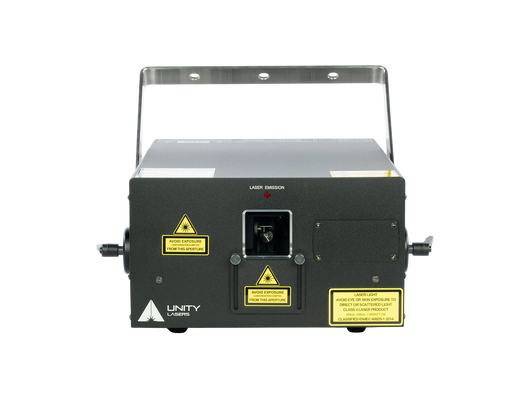

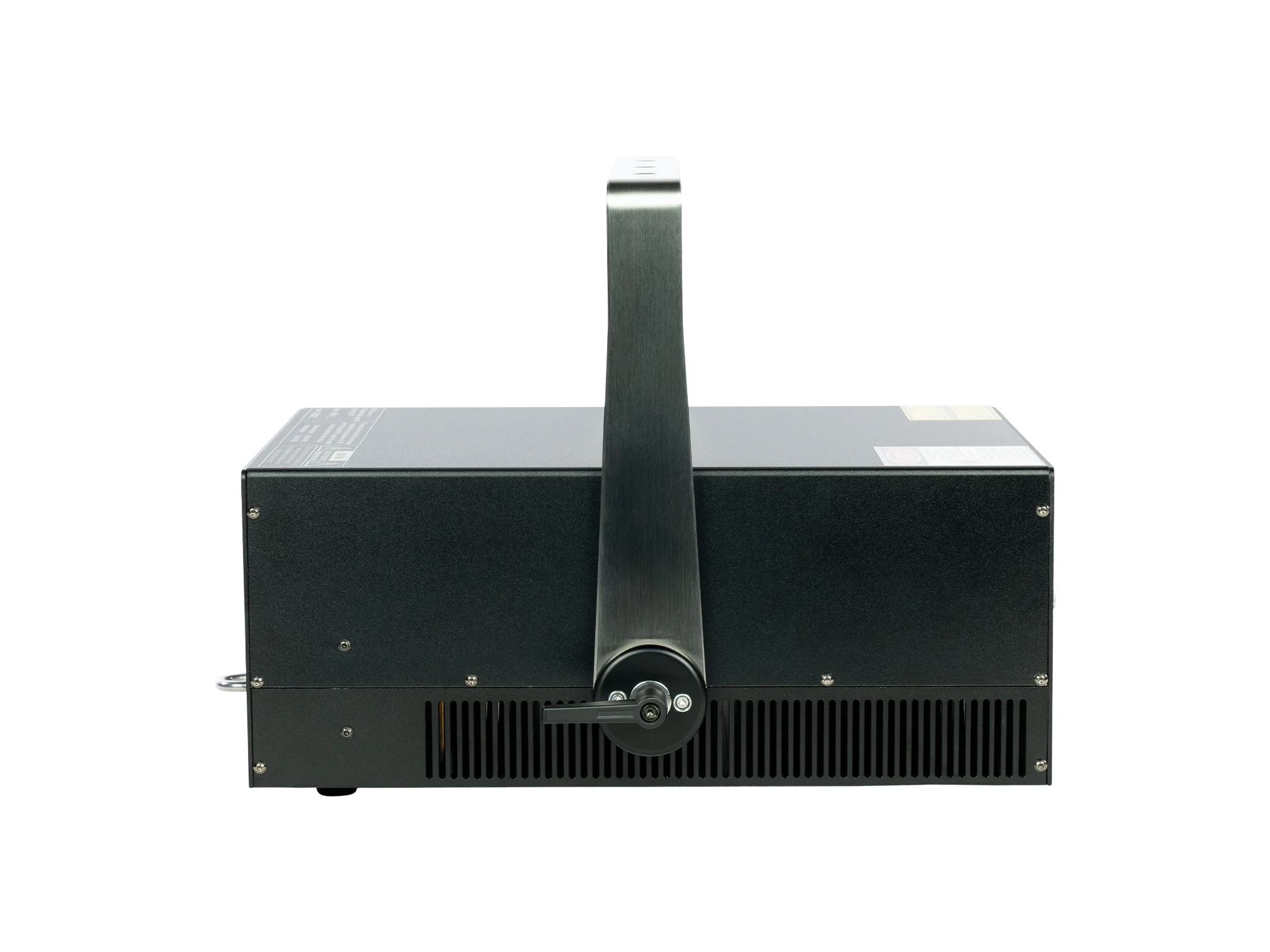

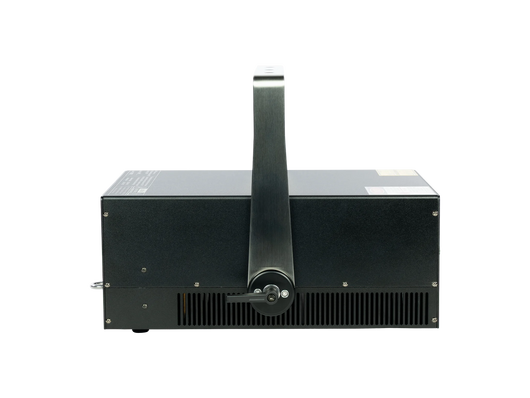

RAW 10 (DMX+ILDA)
Step up your lighting game with the Unity RAW (DMX+ILDA) — a powerful and affordable laser light show projector built for emerging professionals and passionate hobbyists alike. Whether you’re lighting up a club, DJing a backyard rave, or experimenting in your home studio, this compact beast has you covered.
With full DMX and ILDA control, the RAW delivers stunning aerial beam effects, as well as crisp text, logos, graphics, and projection mapping. No fuss. Just lasers.
Available in power levels from 1.7W to 10W, it's a serious upgrade from a basic laser projector without the “serious” price tag.
Product videos
Specifications
RAW 10 (DMX+ILDA)
full-color, semiconductor diode laser system
>10W
Clubs, DJs, large indoor venues (over 5,000 people), medium sized outdoor shows. Beam show, text, graphic, and mapping capable
DMX mode, sound active mode, and ILDA mode (we recommend Pangolin FB3QS and QuickShow for ILDA control)
30,000 points per second @ 8°
50°
Fully complies with the latest EN 60825-1 and FDA regulations
12kg
Laser projector, Estop box, Estop cable (10M/30ft), ILDA cable (10M/30ft), power cable (1.5M/4.5ft), interlock, keys, manual, quickstart guide, variance card, carton packaging (* service dongle if outside US)
2,700 | 2,700 | 4,800
638nm | 525nm | 455nm
5 x 3
<1.1mrad [full angle]
Analog, up to 50kHz
100-230V/50Hz
max. 350W
10-40 °C
IP4X

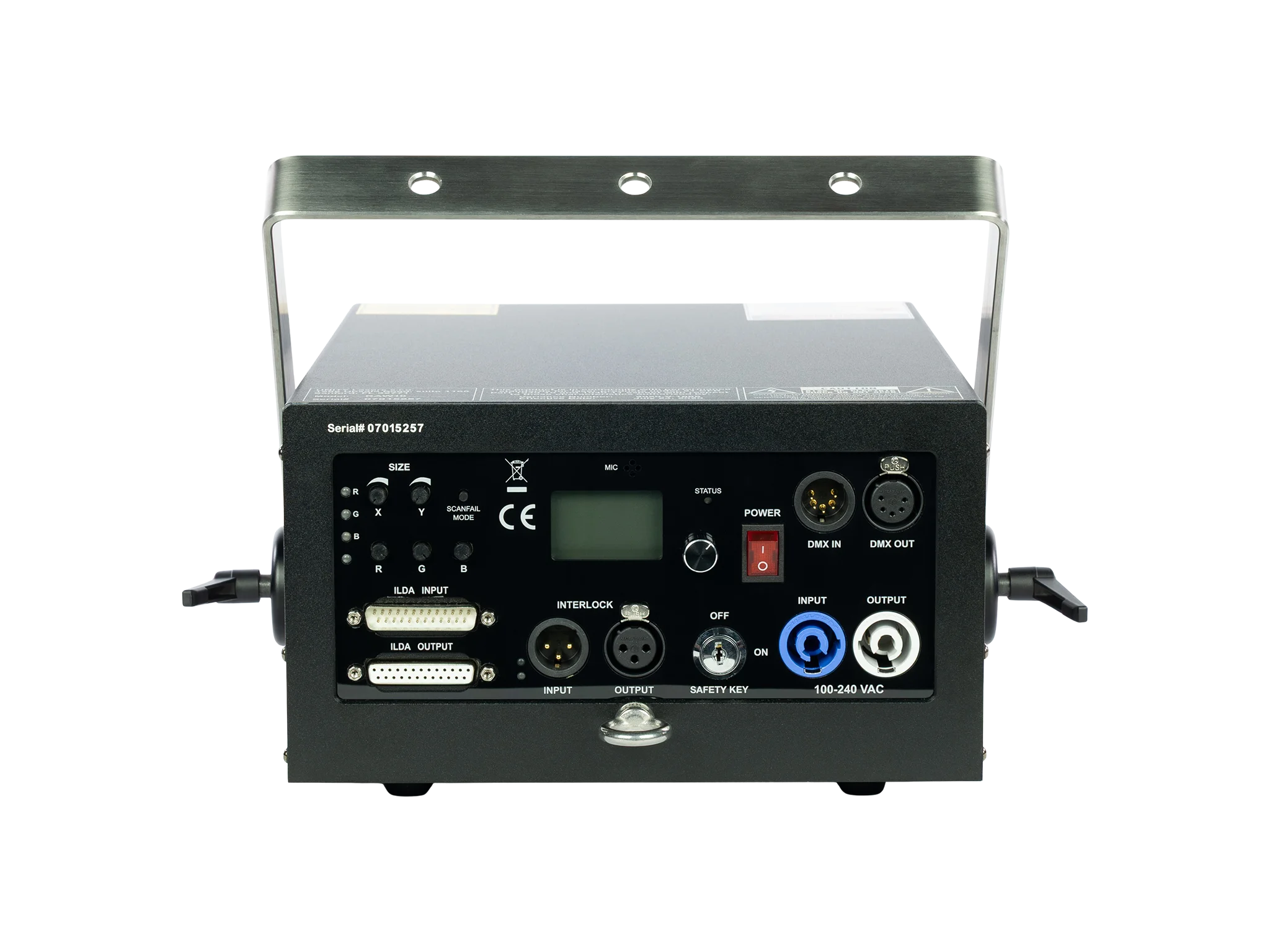

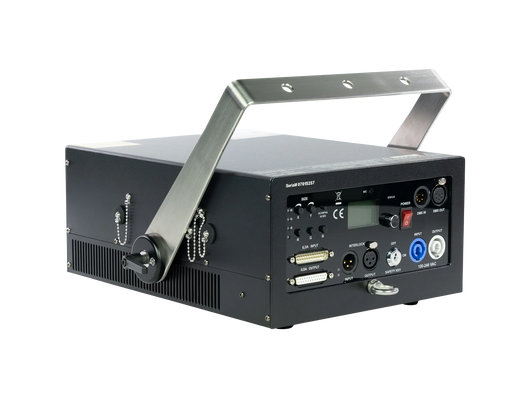

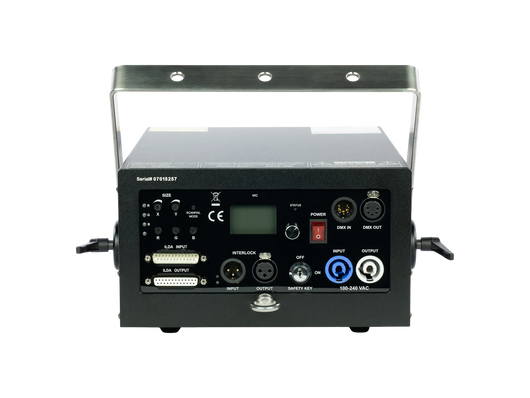

Adjustments for color channels (R,G,B), size/position/invert (X,Y), DMX in/out, ILDA in/out, Estop in/out, power in/out, sound active mode, digital display for DMX address and settings
Keyed interlock, emission delay, magnetic interlock, scan-fail safety, mechanical shutter, adjustable aperture masking plate.
*Due to Advanced Optical Correction technology used in our laser systems the optical power output of each laser colour within the system may slightly differ from the specification of respective laser module(s) installed. This does not affect the total guaranteed power output.
Length: 340 | Width: 247 | Height: 148
Included with
Laser projector
E-stop
E-stop cable
ILDA cable
Power cable
Safety interlock
Safety keys
Manual
Variance card
