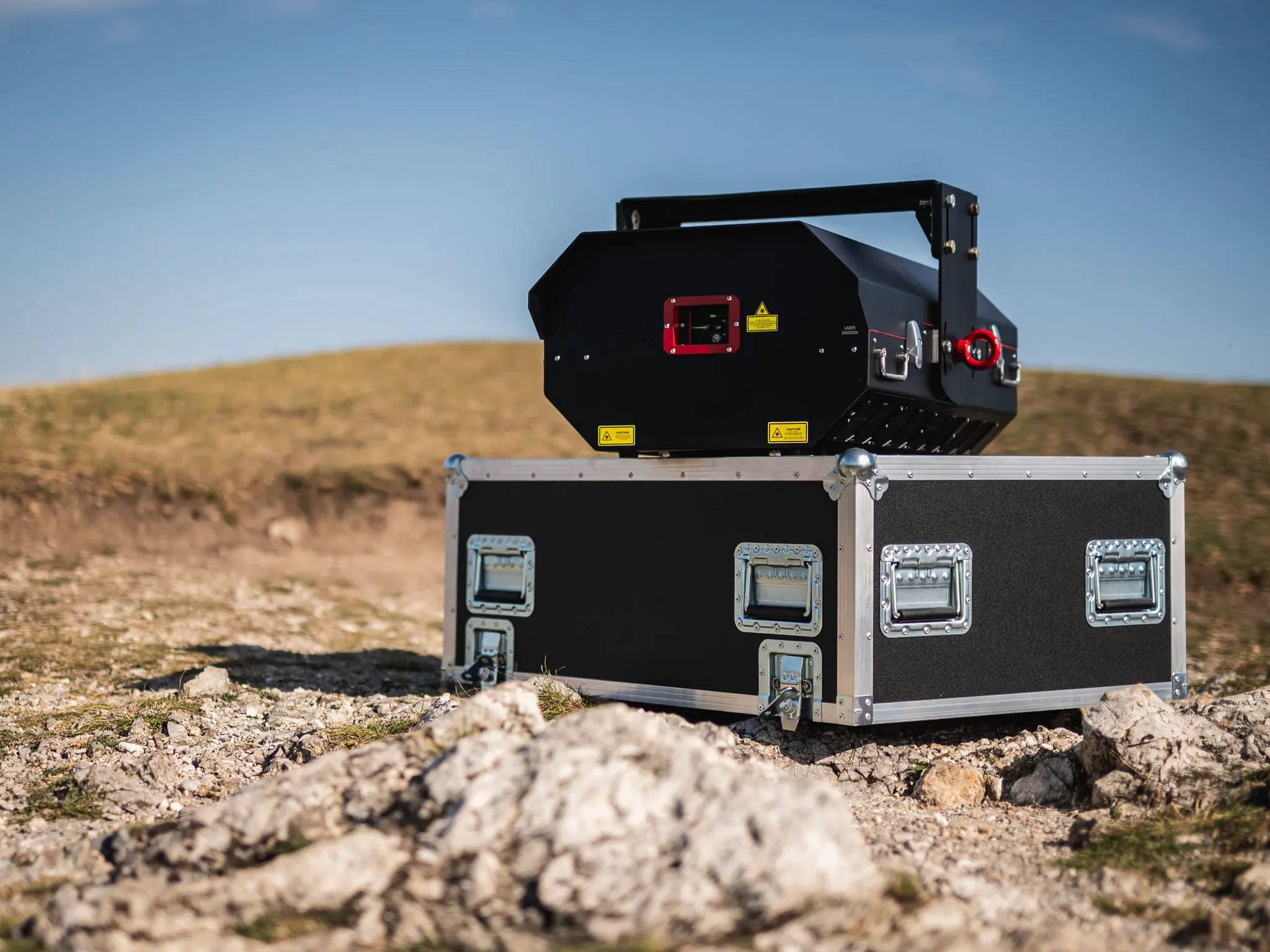

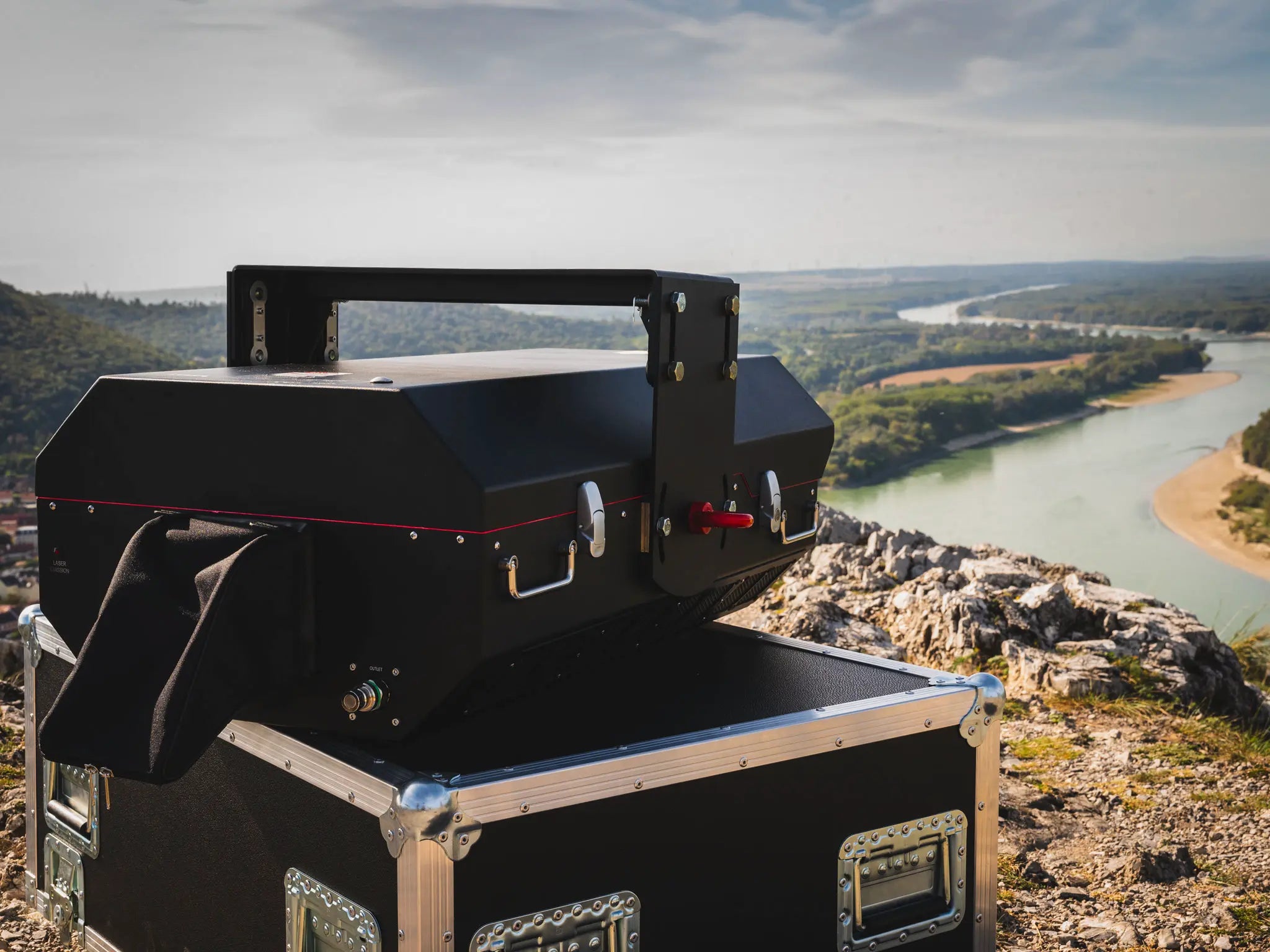

Epic 270
For all those epic shows and unforgettable moments - KVANT brings you the Epic!

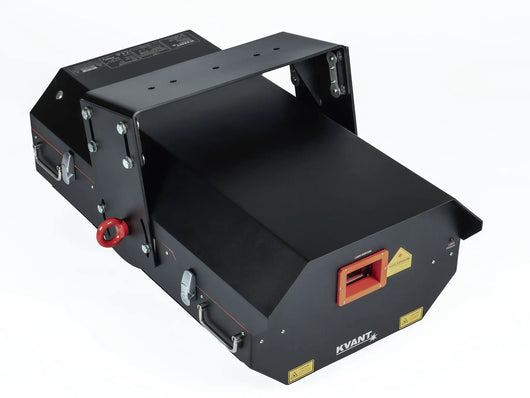

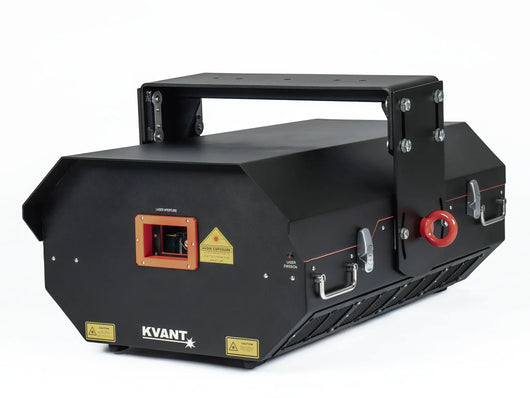

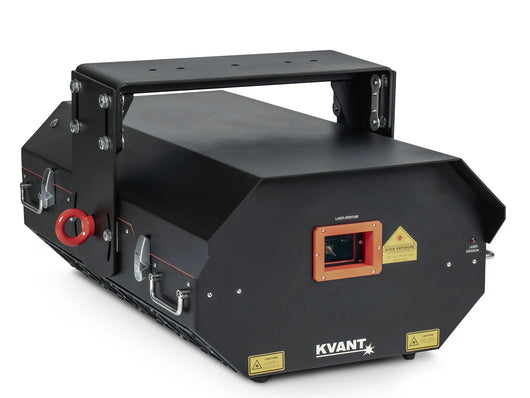

KVANT Epic systems are our new laser projectors with super-charged power output. The three projectors in the range offer 100, 170, and 270 Watts full-colour output with scanners capable of atmospheric, abstract and basic graphic effects. The Epic is designed for harsh outdoor environments, and its housing is built to IP65 standards - thoroughly waterproof and dustproof.
And because we understand that the internal colour alignment of RGB modules can be an issue when lasers are permanently installed far from reach, we fitted Epic models with Motorized Dichroic Filters as default, making that otherwise fiddly procedure an effortless task.
Product videos
Specifications
Semiconductor laser diode | IP65 | Full-colour RGB laser projector

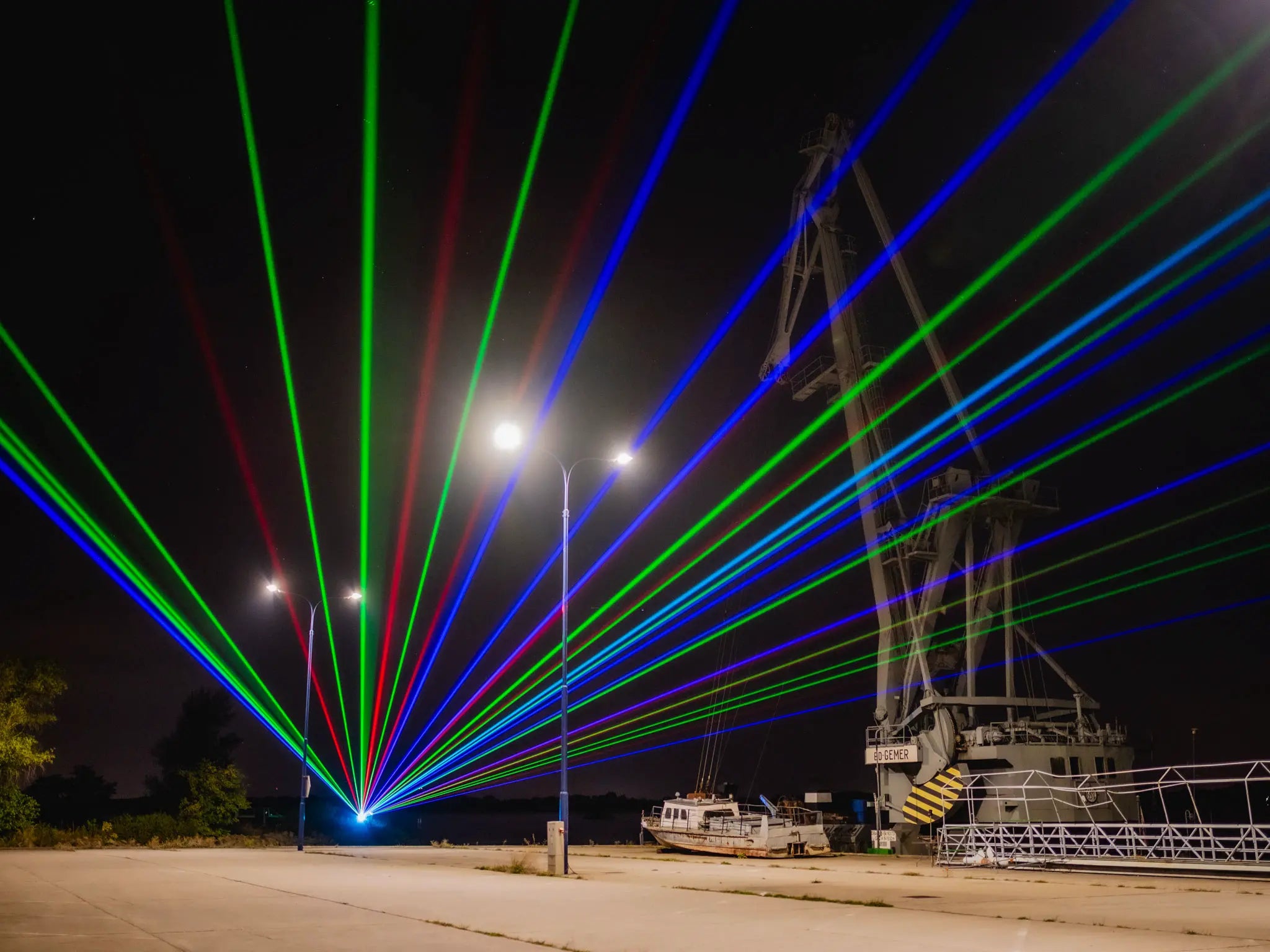

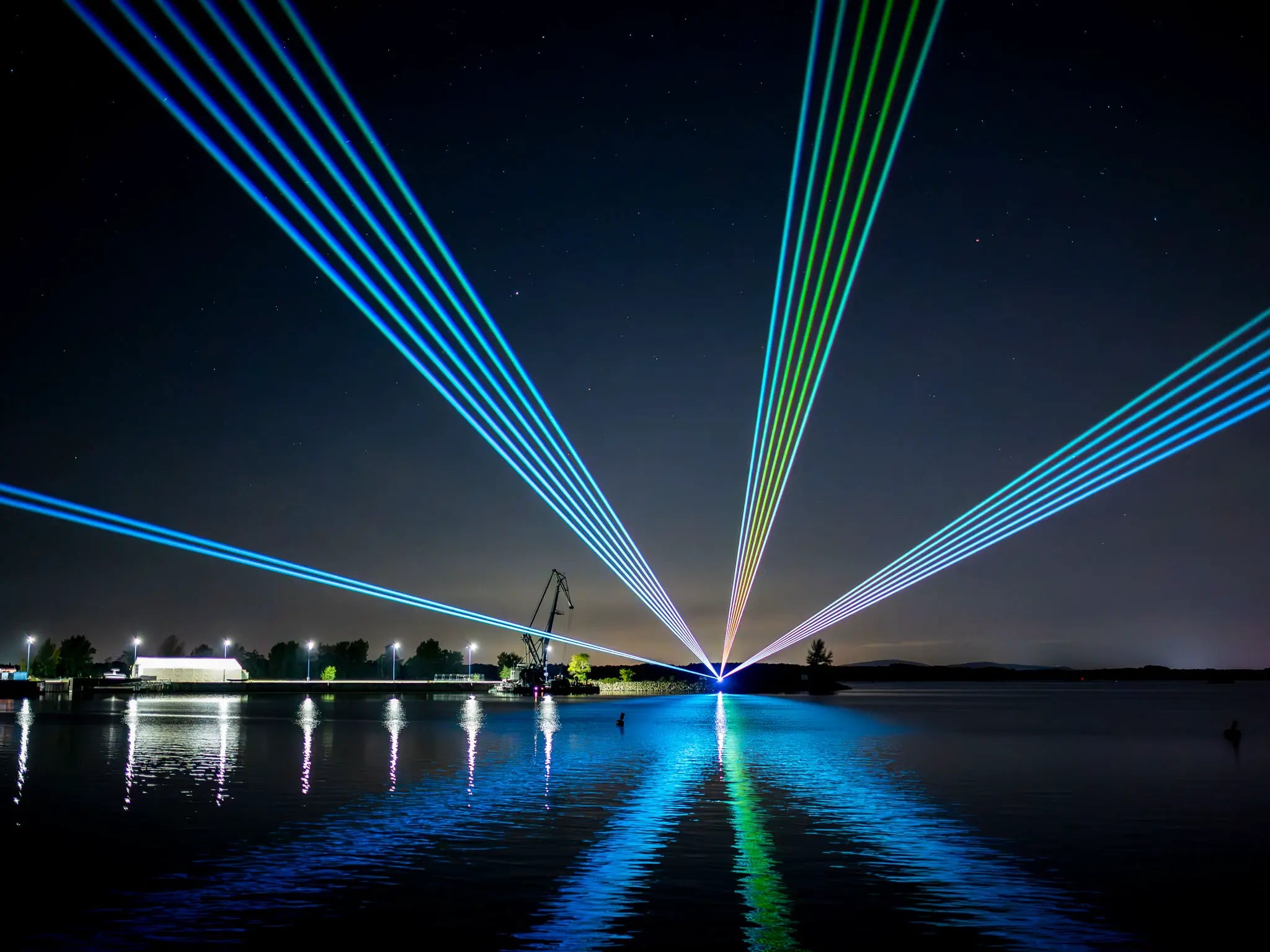

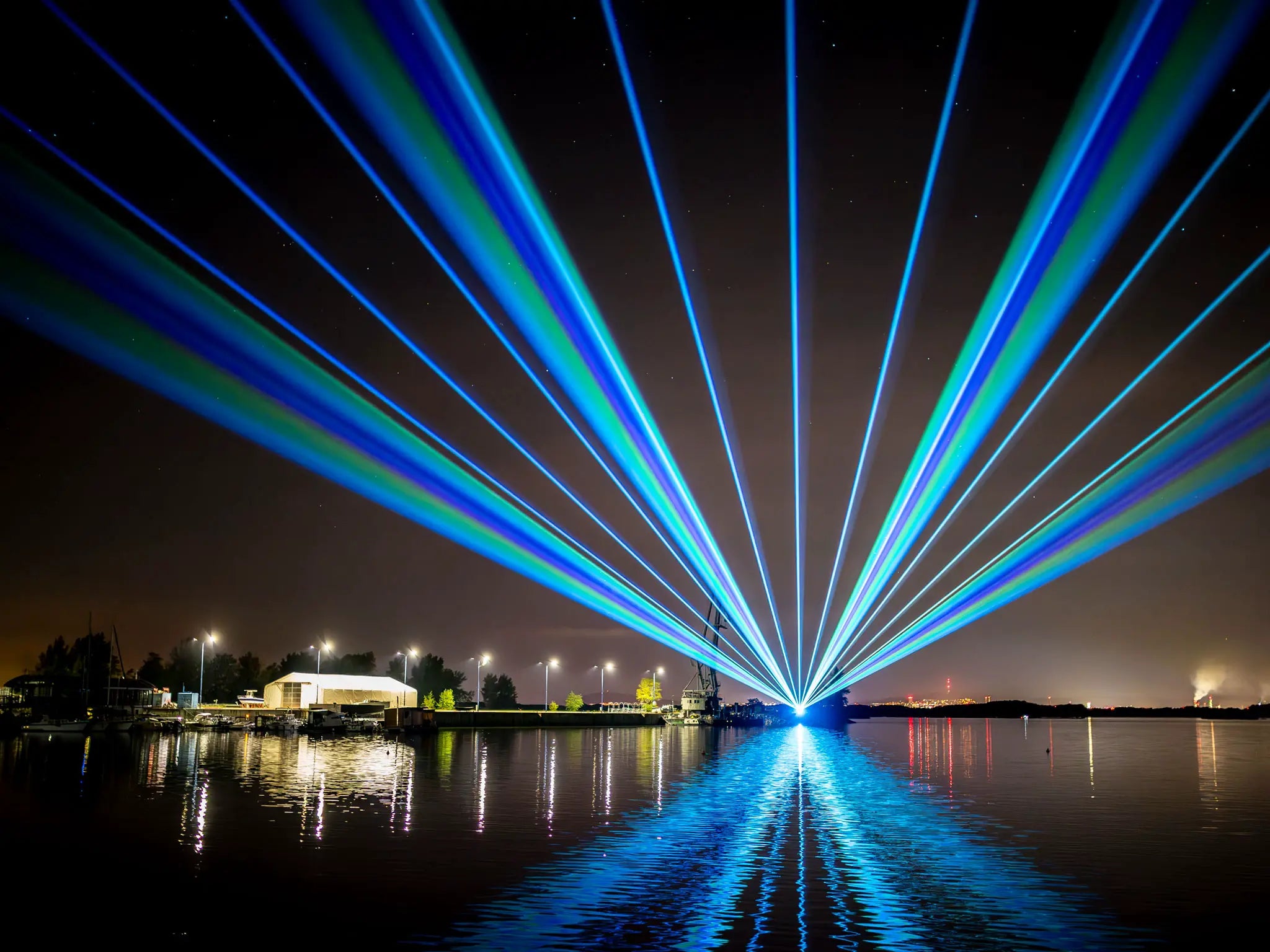

Large-scale outdoor laser displays [atmospheric, basic graphics]
FB4-SK [Ethernet, ArtNet | PC, Lighting Console or Autoplay]
EN 60825-1
89 [laser projector] | 46 [chiller]
500 x 315 x 876
30 | 60 | 180 *note A
638 | 525 | 465+455
10 x 12
1.1 [full angle, averaged value, *note B]
100
17 kpps @ 8°, max. scanning angle 40° on both axes
100-240/50-60Hz | Neutrik powerCON TRUE1 [laser projector] | 200-230/50-60Hz [chiller]
< 1,800 W [laser projector] | < 1,600 W [chiller]
5-40
Chiller, 10M Water supply hoses, 2x Heavy-duty flight case, 10M AC power cable, 10M Ethernet rj45 signal cable, E-STOP Remote with 10M 3-pin XLR cable, Set of 2 safety keys, Interlock bypass dongle [supplied for the USA only], USB memory stick with the user manual, QC certificate. Pangolin QuickShow laser control and creation software is available for FREE download.
Motorised Dichroic Filters. All the basic system settings and adjustments such as power output adjustment for each colour, X & Y axes invert, X & Y size and position, etc. are managed via the built-in FB4 control interface. Scanning system overload protection.
Keyed interlock, emission delay, magnetic interlock, scan-fail safety, fast electromechanical shutter [reaction time <20ms], adjustable aperture masking plate, Emergency STOP system with keyed remote and manual RESTART button.
Due to Advanced Optical Correction technology used in Kvant systems, the real power output of each laser module installed within the system may slightly differ from its specification. This doesn't affect the total guaranteed power output of the system.
The beam divergence total is calculated as an average arithmetic value of all individual colours. The divergence of each colour is calculated as: 1. FWHM of the beam cross-section for round beams, or 2. The arithmetic average of the beam's horizontal and vertical divergence for all rectangular beams.
Included with
Laser Projector
AC power cable
Ethernet cable
E-stop with XLR cable
Interlock
Heavy-duty flight case
Safety keys
USB drive with manual
QC certificate
Pangolin Quickshow
Chiller & hoses
