ELITE 3 PRO FB4
Built for lighting professionals who need precision without the premium price tag, the ELITE PRO FB4 delivers rich color, sharp graphics, and reliable scanning performance. Compared to the RAW series, it uses upgraded diode sources, optics, and XY scanners — giving you brighter, bolder projection and better image resolution, all in a sleek pro-grade housing.
With power options from 3W to 5W, this laser light show projector is ideal for clubs, theaters, corporate events, churches, and small arenas. It includes full DMX, ArtNET, and ILDA, and Ethernet control (from a PC).

Product videos
Specifications
ELITE 3 PRO
Full-colour, Semiconductor diode laser system
>3.1W
Lighting professionals: medium indoor venues, clubs, theater, house of worship, gymnasium (up to 3,000 people). Beam show, text, graphic, and mapping capable
Pangolin FB4 DMX [Ethernet, ArtNet, DMX, sACN, ILDA out | PC, Lighting Console, Auto Mode, Mobile App: Apple, Android]
30,000 Points per second @ 8°
50°
Fully complies with the latest EN 60825-1 and FDA regulations
8kg
Laser projector w/ FB4 DMX, protective case, Estop box, Estop cable (10M/30ft), ethernet cable (10M/30ft), power cable (1.5M/4.5ft), interlock, keys, manual, quickstart guide, variance card (* service dongle if outside US)
610 | 800 | 1,760
638nm | 525nm | 455nm
2 x 4
<1.0mrad [Full Angle]
Analog 100kHz
100-230V/50Hz
Max. 250W
Max. 250W
IP4X

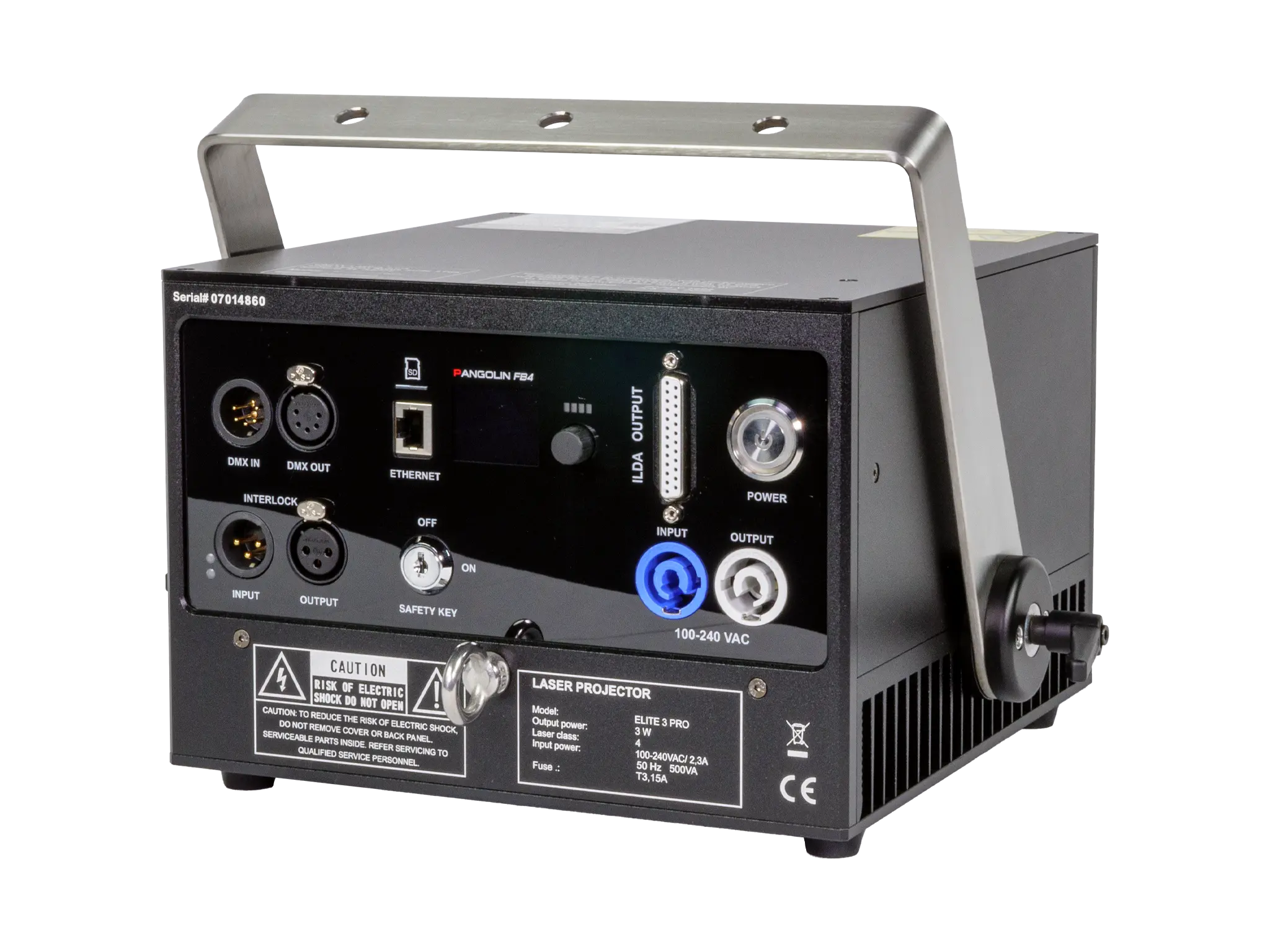

All the adjustments, such as power output of each color, X & Y axes invert, X & Y size and position, safety, etc., are managed digitally by the FB4 control system. Ethernet in, power in/out, DMX in/out, Estop in/out, ILDA out
Keyed interlock, Emission delay, Magnetic interlock, Scan-fail safety, Mechanical shutter, Adjustable aperture masking plate.
*Due to Advanced Optical Correction technology used in our laser systems, each laser colour's optical power output may slightly differ from the specification of the respective laser module(s) installed. This does not affect the total guaranteed power output.
Length: 238 | Width: 246 | Height: 175
Included with
Laser projector
Laser control software
Protective case
E-stop
E-stop cable
Ethernet cable
Power cable
Safety interlock
Safety keys
Manual
Variance card
