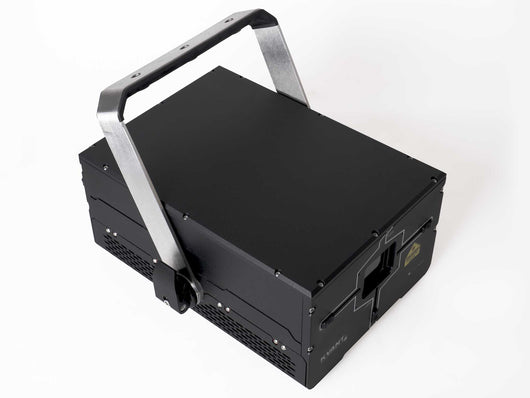

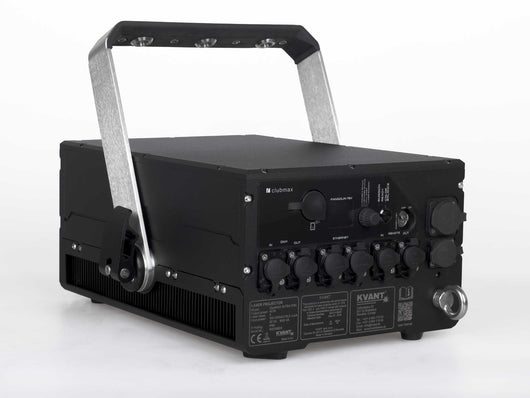

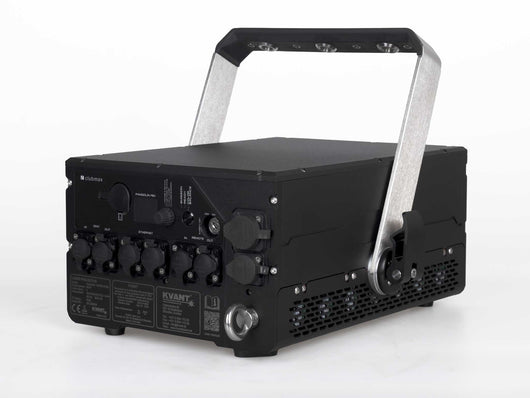

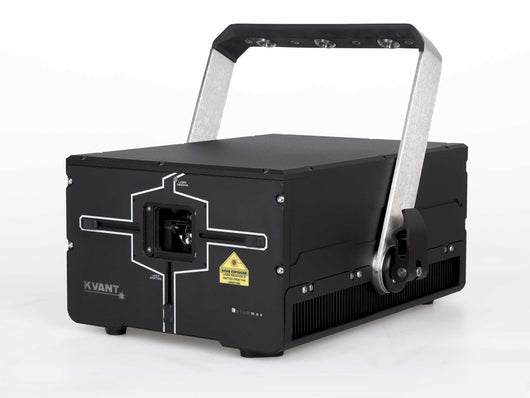

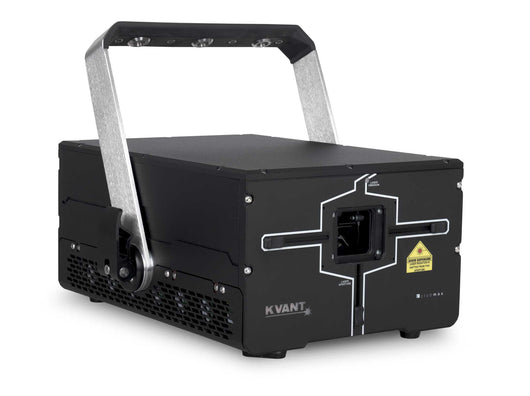

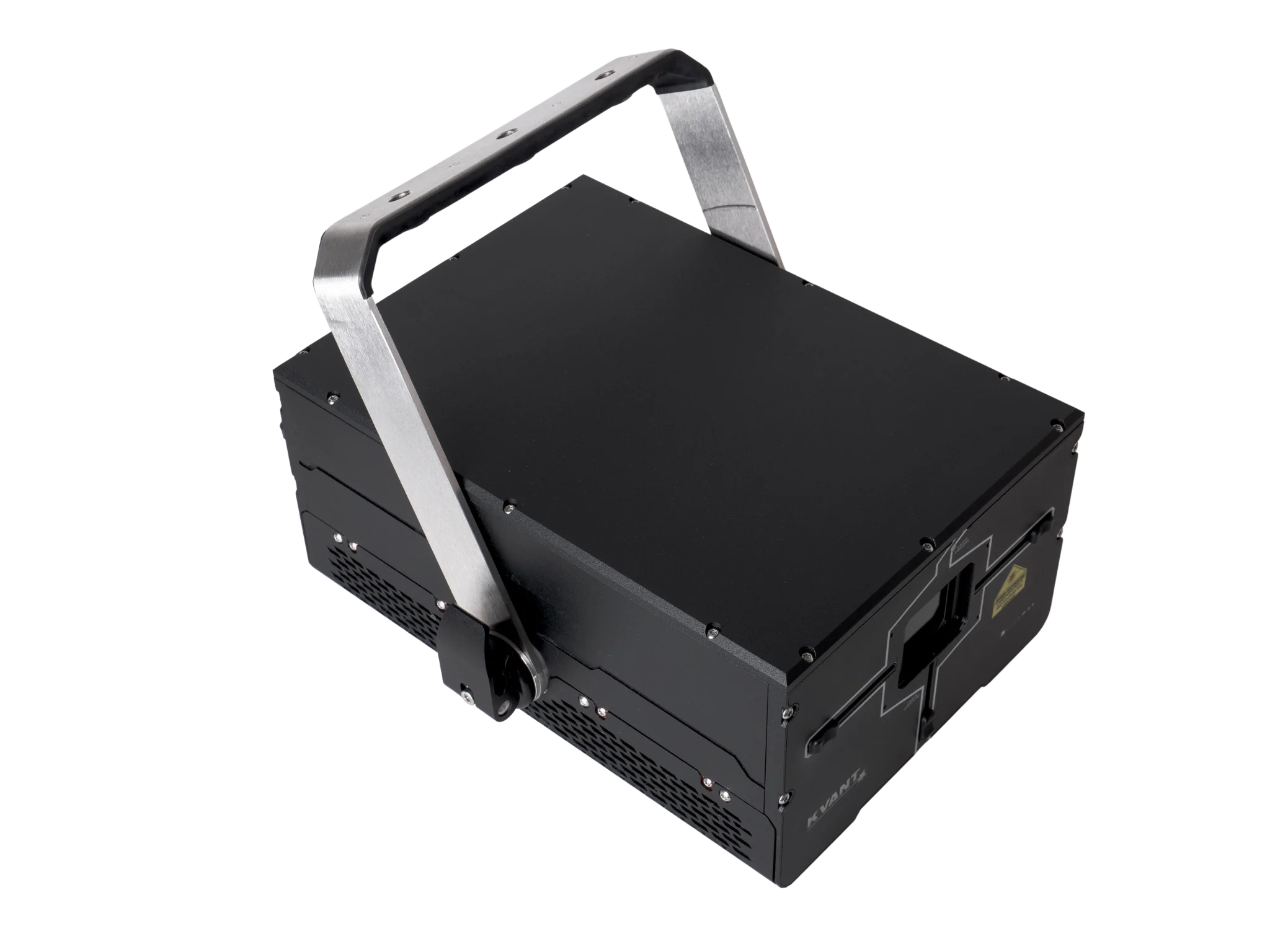

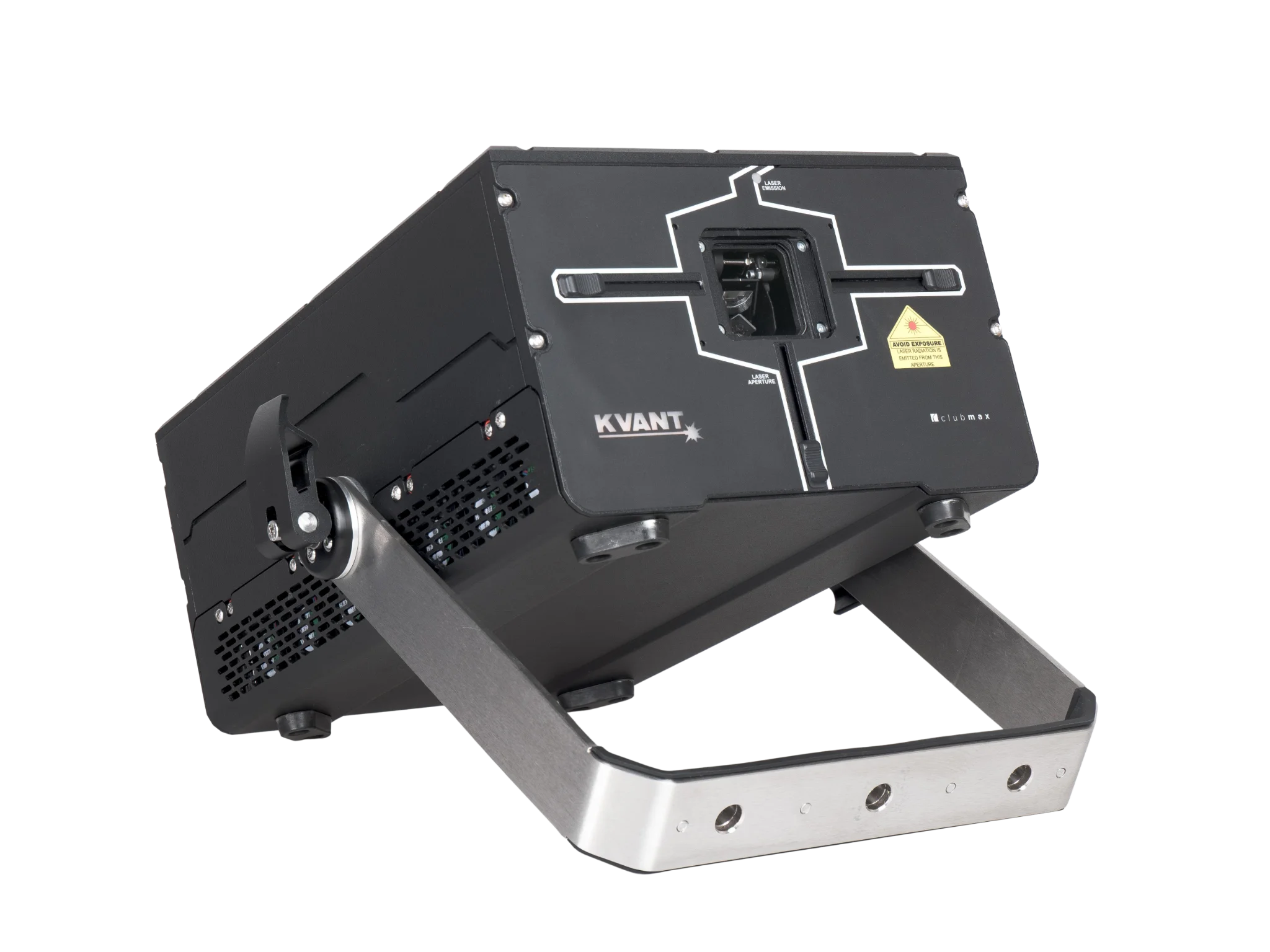

Clubmax 24 FB4 IP65
Engineered for lighting professionals who need a laser that shows up ready for work night after night, this third-generation evolution of the all-time bestseller blends power, durability and refined color performance. From cozy rooms to mega clubs and open-air venues, beams hold their shape and color stays even across the entire setup.
Its battlefield-tested housing and reinforced internals handle heat, travel and continuous operation with ease, making it ideal for touring crews, permanent installs and rental companies. Automated color balancing keeps every unit in sync, removing guesswork and ensuring consistent output across complex multi-projector setups. Power options from 3W to 40W give designers the range to dial in exactly what their venue needs. For demanding outdoor shows, IP65 weatherproof models are available in 18W, 24W and 40W.
Built with longevity in mind, the design supports long maintenance intervals and a long life span, reducing downtime and extending value for venues and production teams. It is a system crafted to keep pace with demanding schedules while delivering color, movement and reliability that professionals recognize the moment it powers up.
Product videos
Specifications
Semiconductor laser diode | IP65 | Full-colour RGB laser projector
Large-scale indoor and large outdoor laser displays [atmospheric, abstract, text, animations]

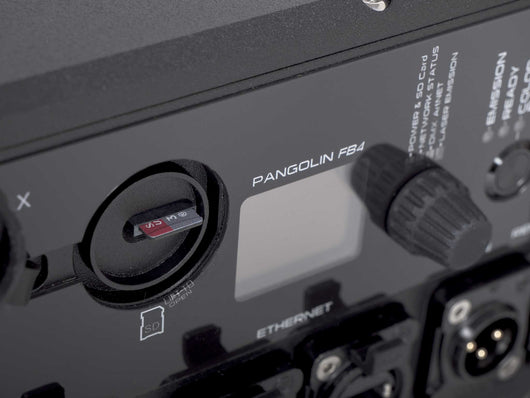

FB4-SK [Ethernet, ArtNet, DMX | PC, Lighting Console or Autoplay]
EN 60825-1 [tested by TÜV SÜD], FDA
19.5
265 x 179 x 395
6 | 8 | 10 *note A
638 | 525 | 455
5 x 7
1.1 [full angle, averaged value, *note B]
100
Juno 5 | 30 kpps @ 8°, max. scanning angle 50° on both axes

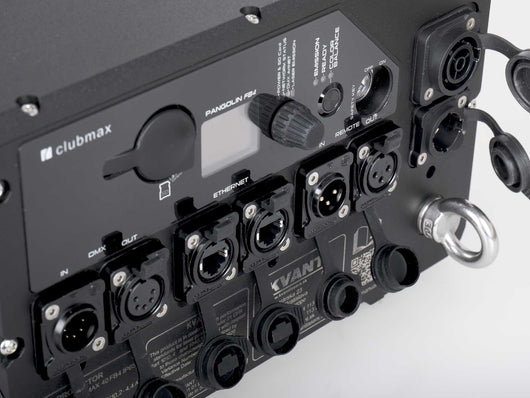

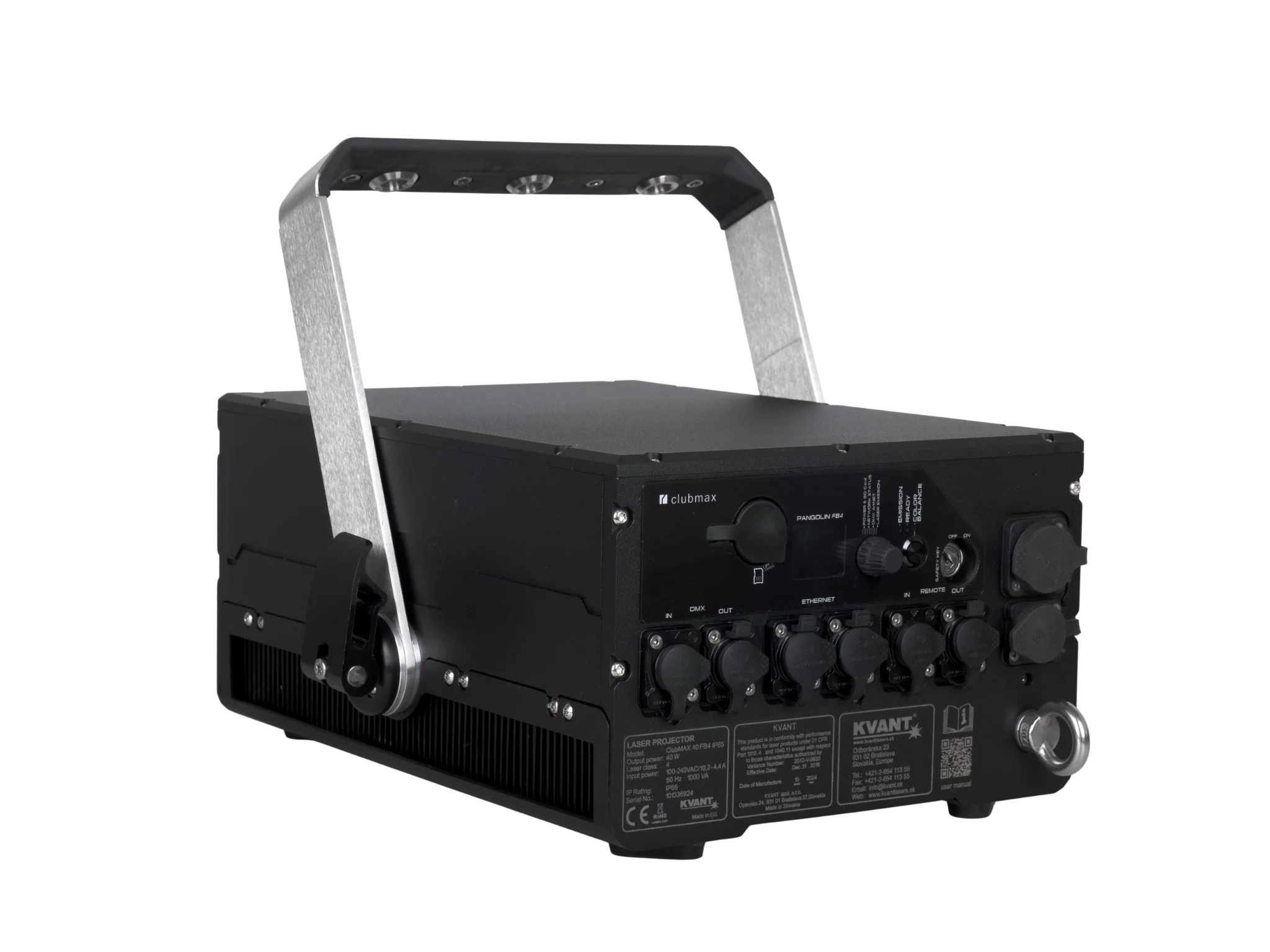

100-240/50-60Hz | Neutrik powerCON TRUE1
1200
5-28 [-20 to +35 when installed in Monsoon protection enclosure with AC unit]
Heavy-duty flight case, 1.5M AC power cable, 10M Ethernet rj45 signal cable, E-STOP Remote with 10M 3-pin XLR cable, Set of 4 safety keys, Interlock bypass dongle [supplied for the USA only], USB memory stick with the user manual, QC certificate. Pangolin QuickShow laser control and creation software is available for FREE download.

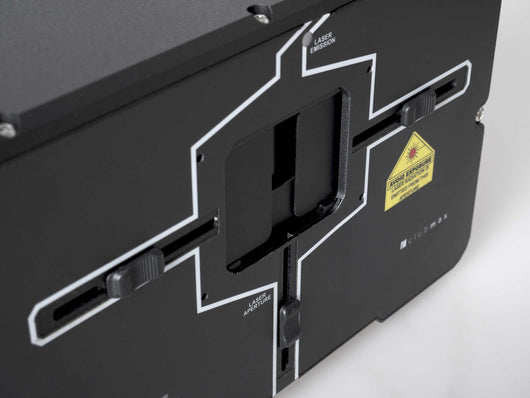

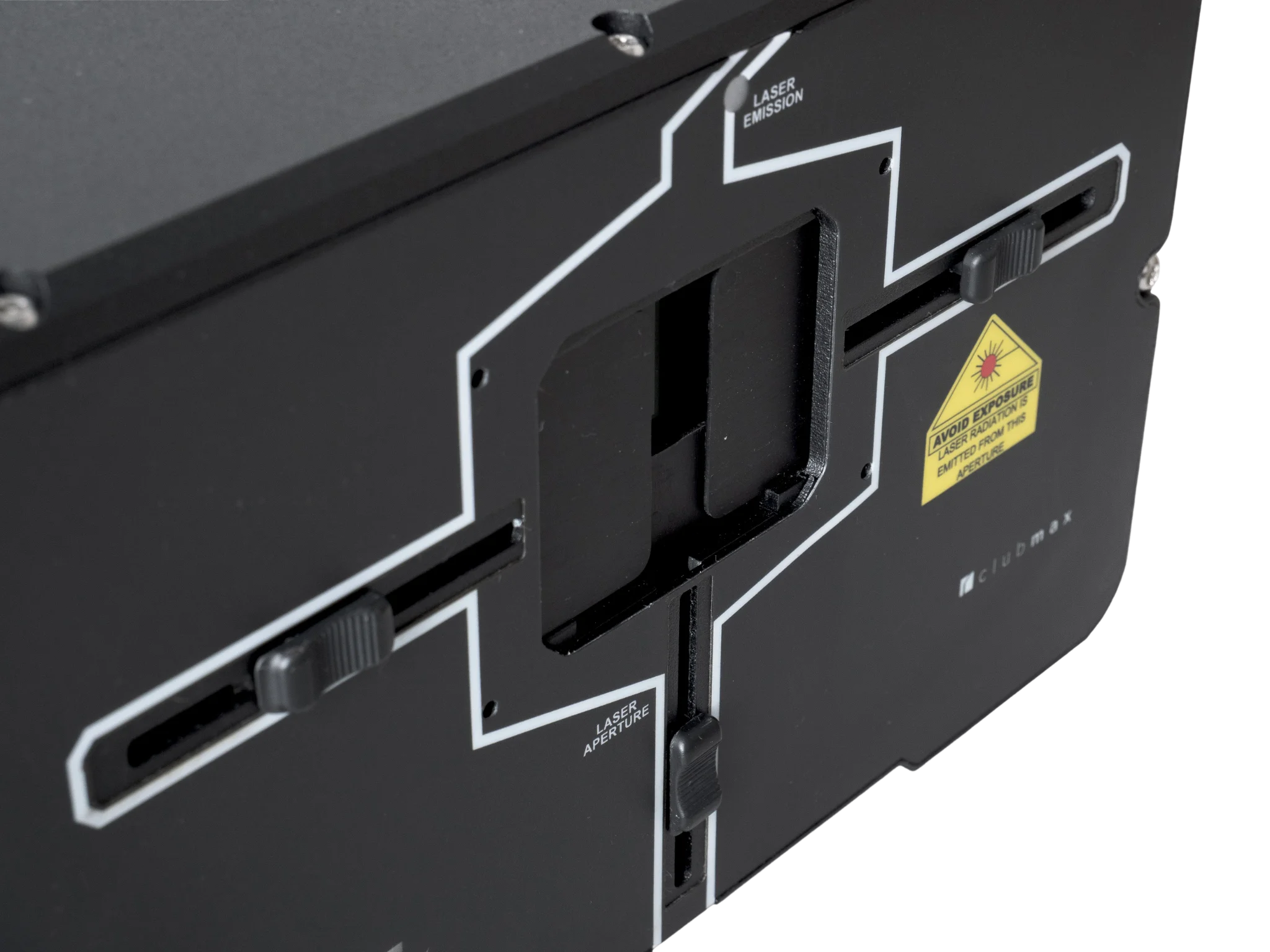

Motorised Dichroic Filters. Inbuilt 3-way aperture masking plate. Device visual identifier. All the basic system settings and adjustments such as power output adjustment for each colour, X & Y axes invert, X & Y size and position, etc. are managed via the built-in FB4 control interface. Scanning system overload protection.
Keyed interlock, emission delay, magnetic interlock, scan-fail safety, fast electromechanical shutter [reaction time <20ms], adjustable aperture masking, Emergency STOP system with keyed remote and manual RESTART button.
Due to Advanced Optical Correction technology used in Kvant systems, the real power output of each laser module installed within the system may slightly differ from its specification. This doesn't affect the total guaranteed power output of the system.
The beam divergence total is calculated as an average arithmetic value of all individual colours. The divergence of each colour is calculated as: 1. FWHM of the beam cross-section for round beams, or 2. The arithmetic average of the beam's horizontal and vertical divergence for all rectangular beams.
Included with
Laser projector
AC power cable
Ethernet cable
E-stop with XLR cable
Interlock
Heavy-duty flight case
Safety keys
USB drive with manual
QC certificate
Pangolin Quickshow
