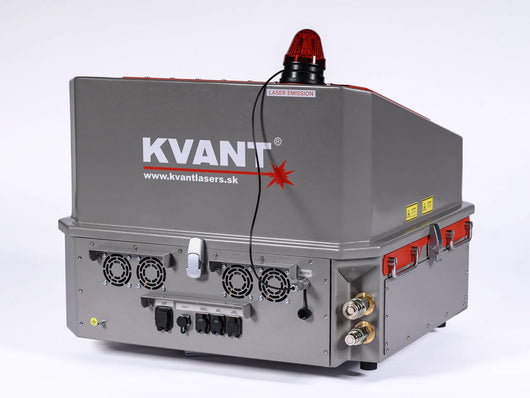

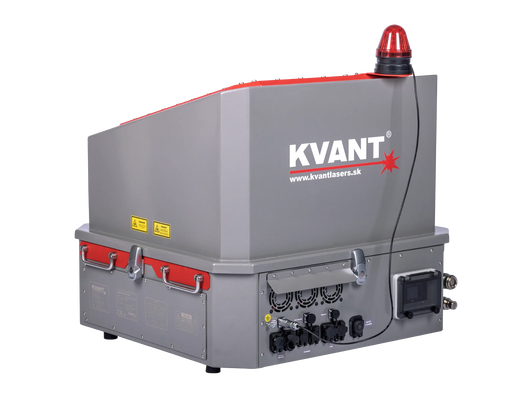

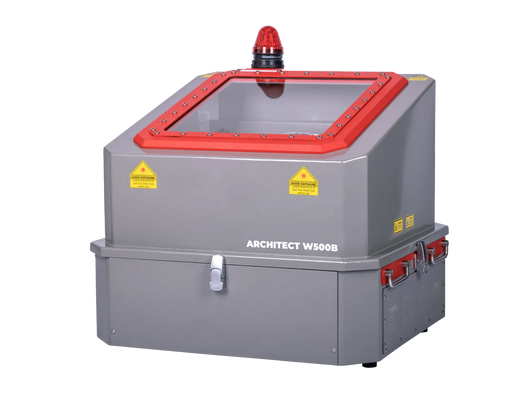

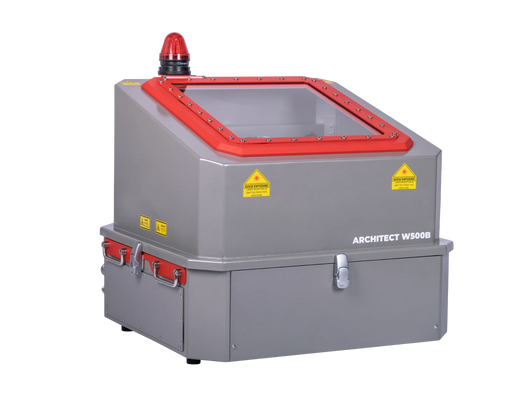

Architect W500B

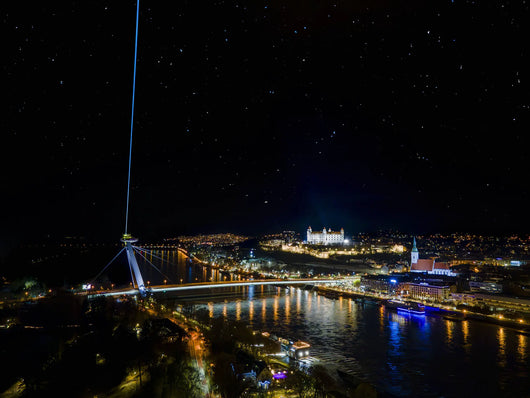

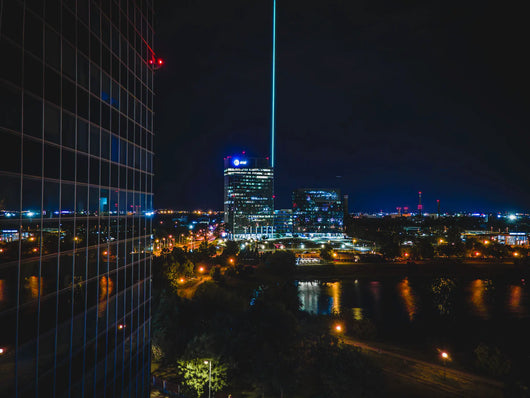

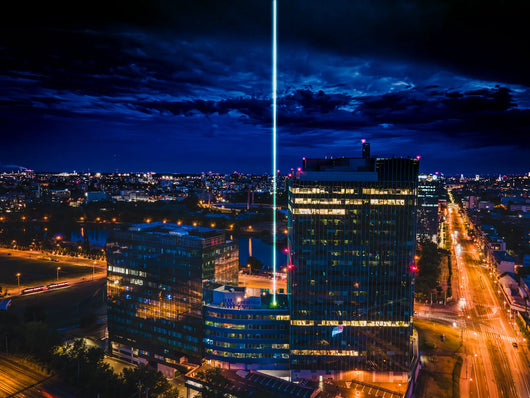

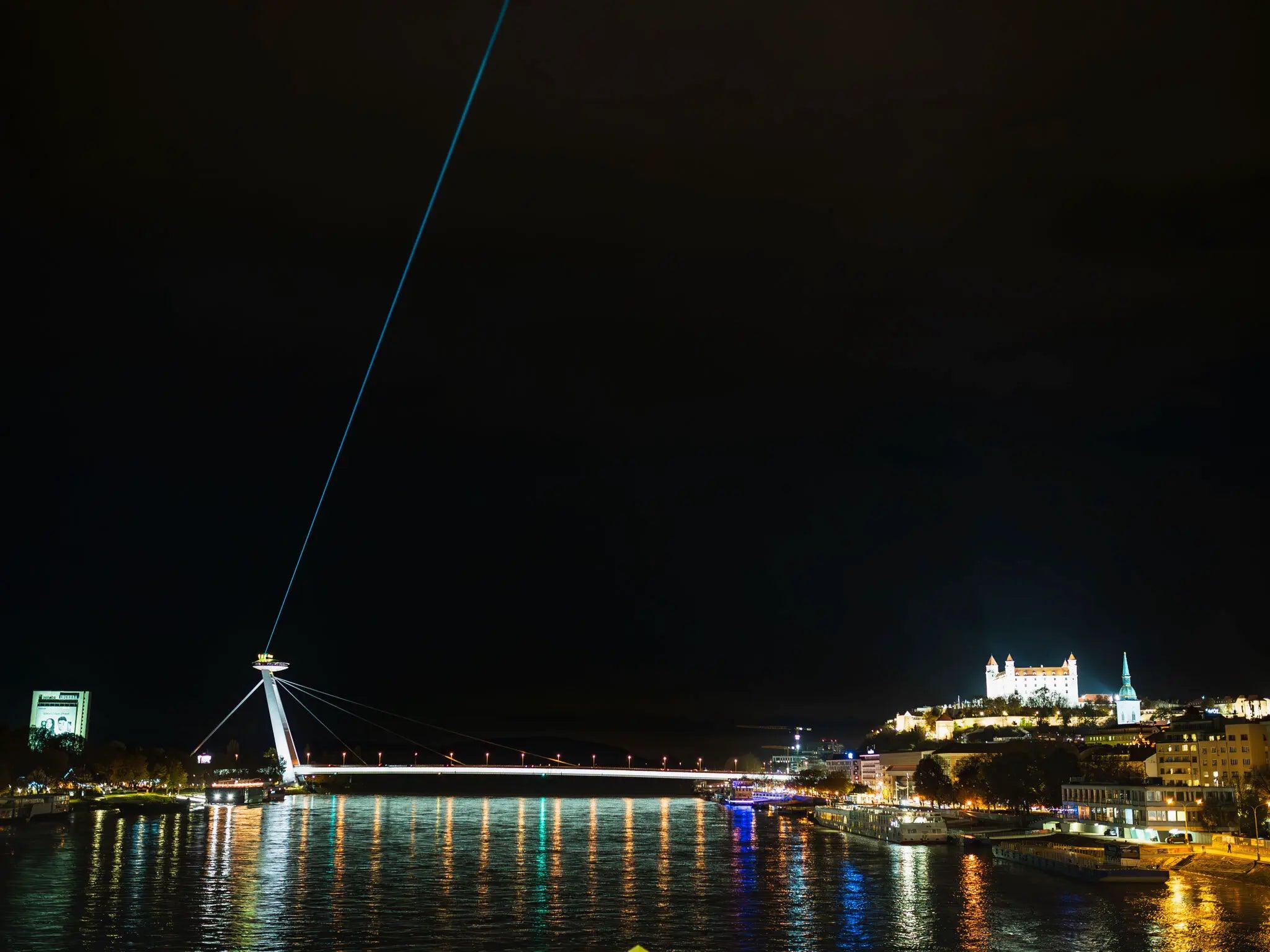

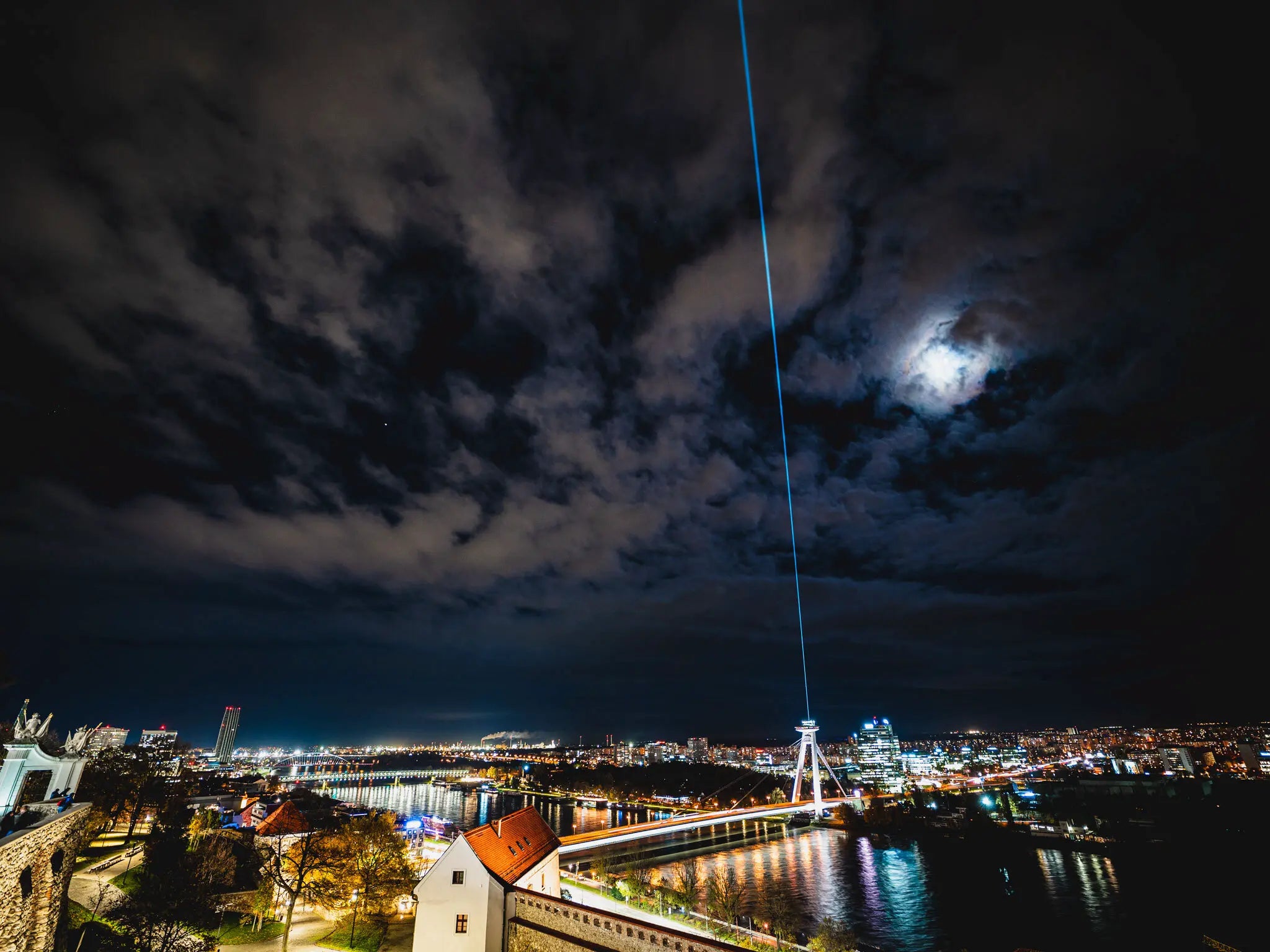

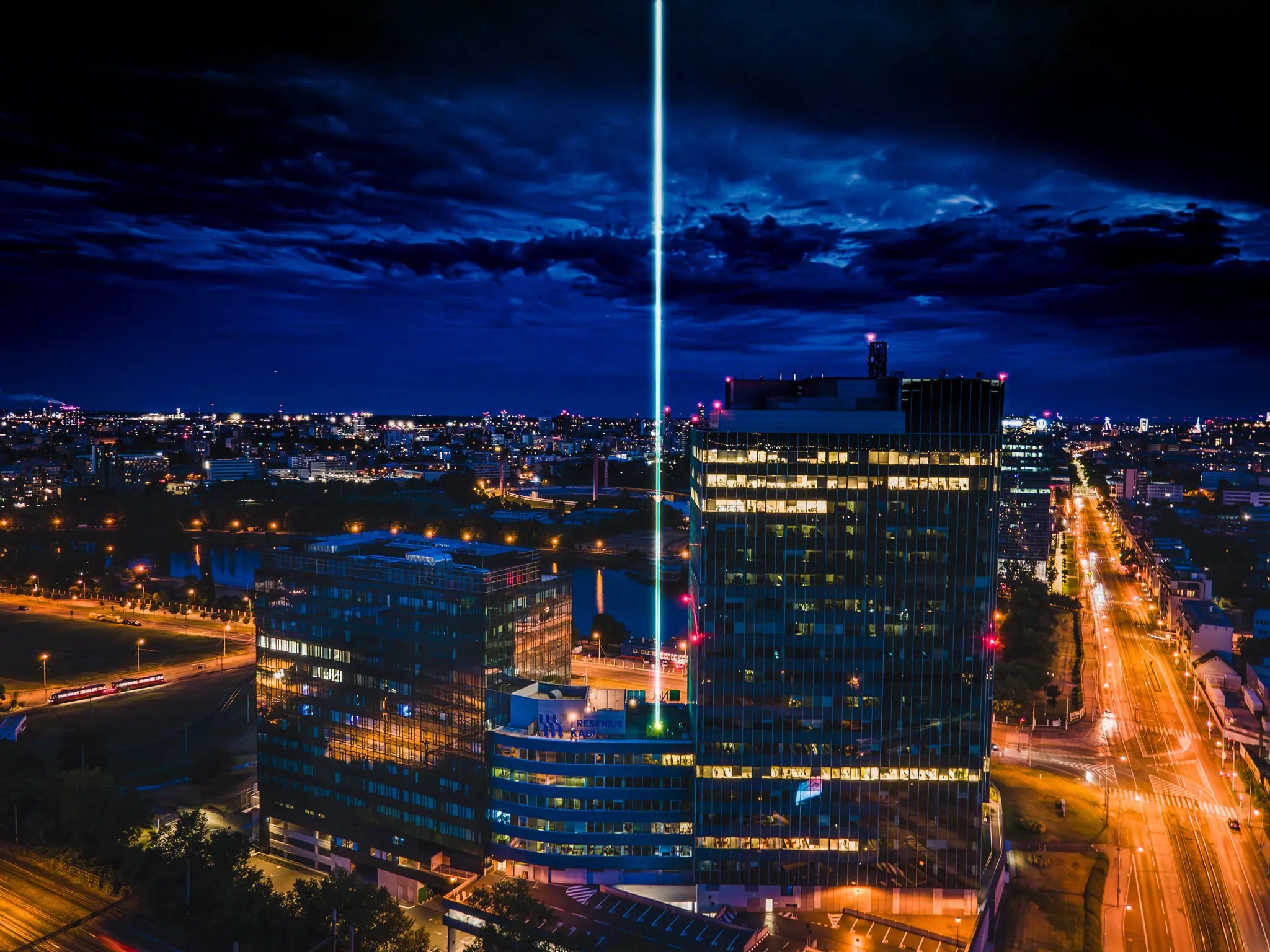

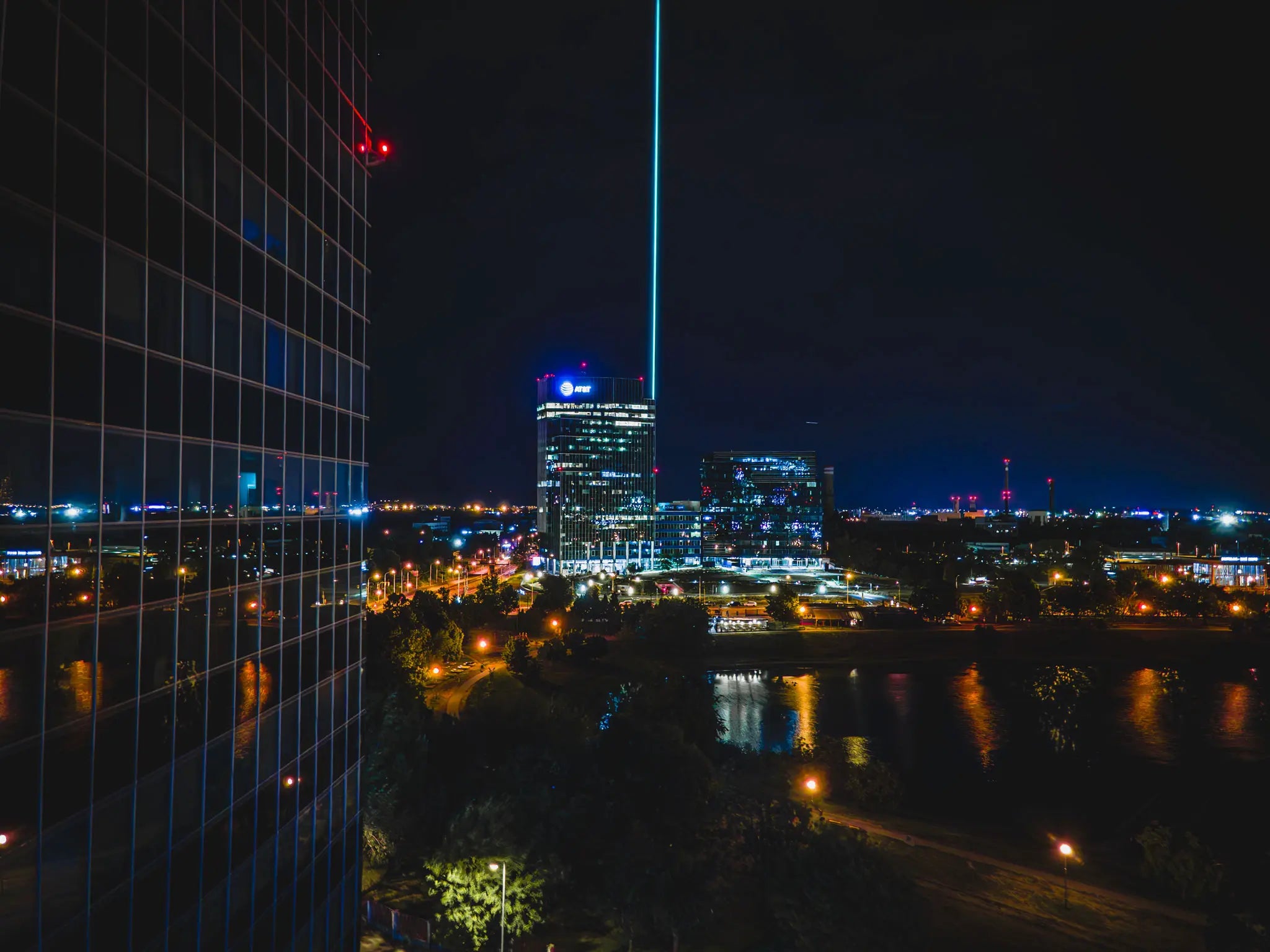

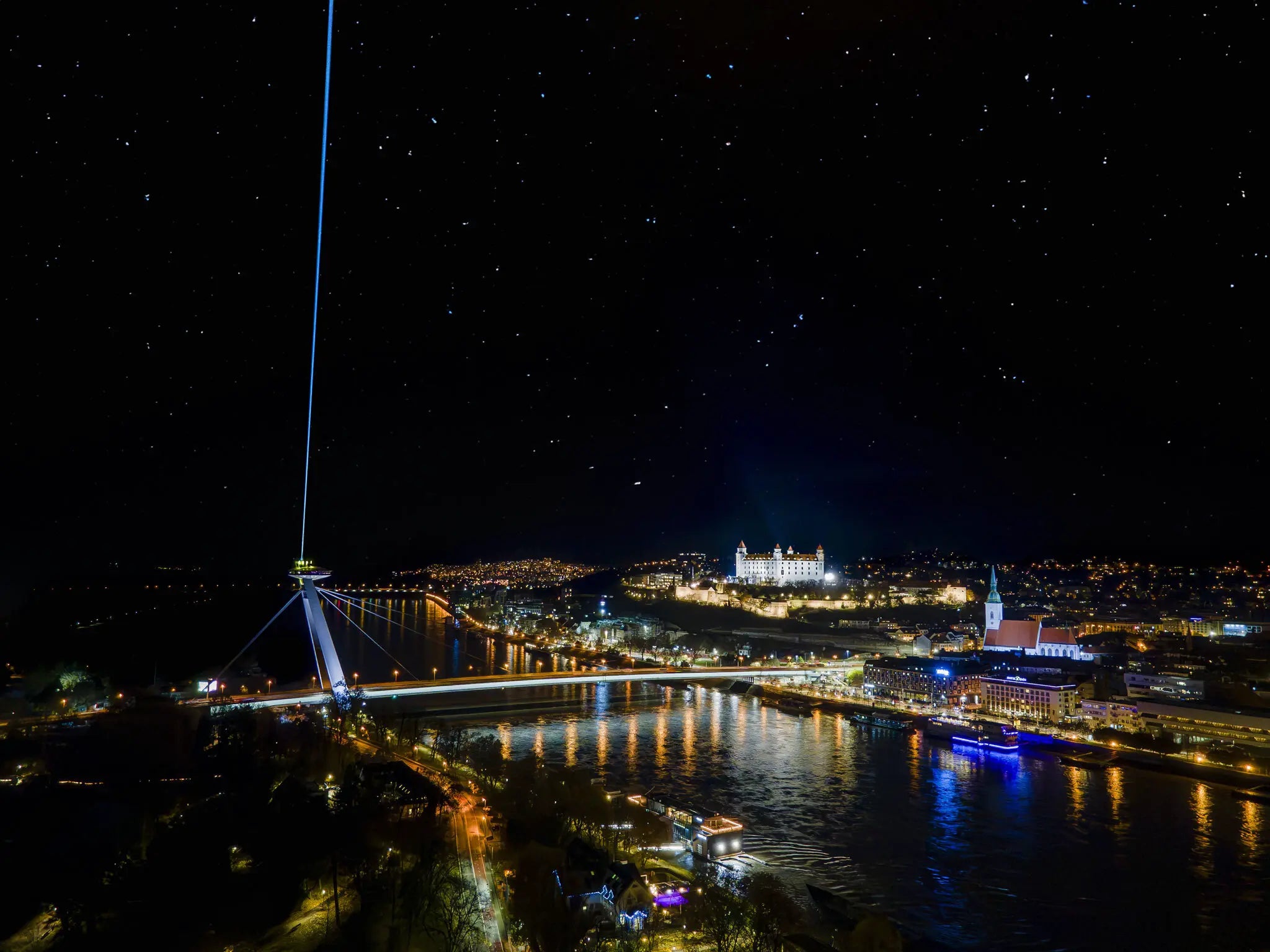

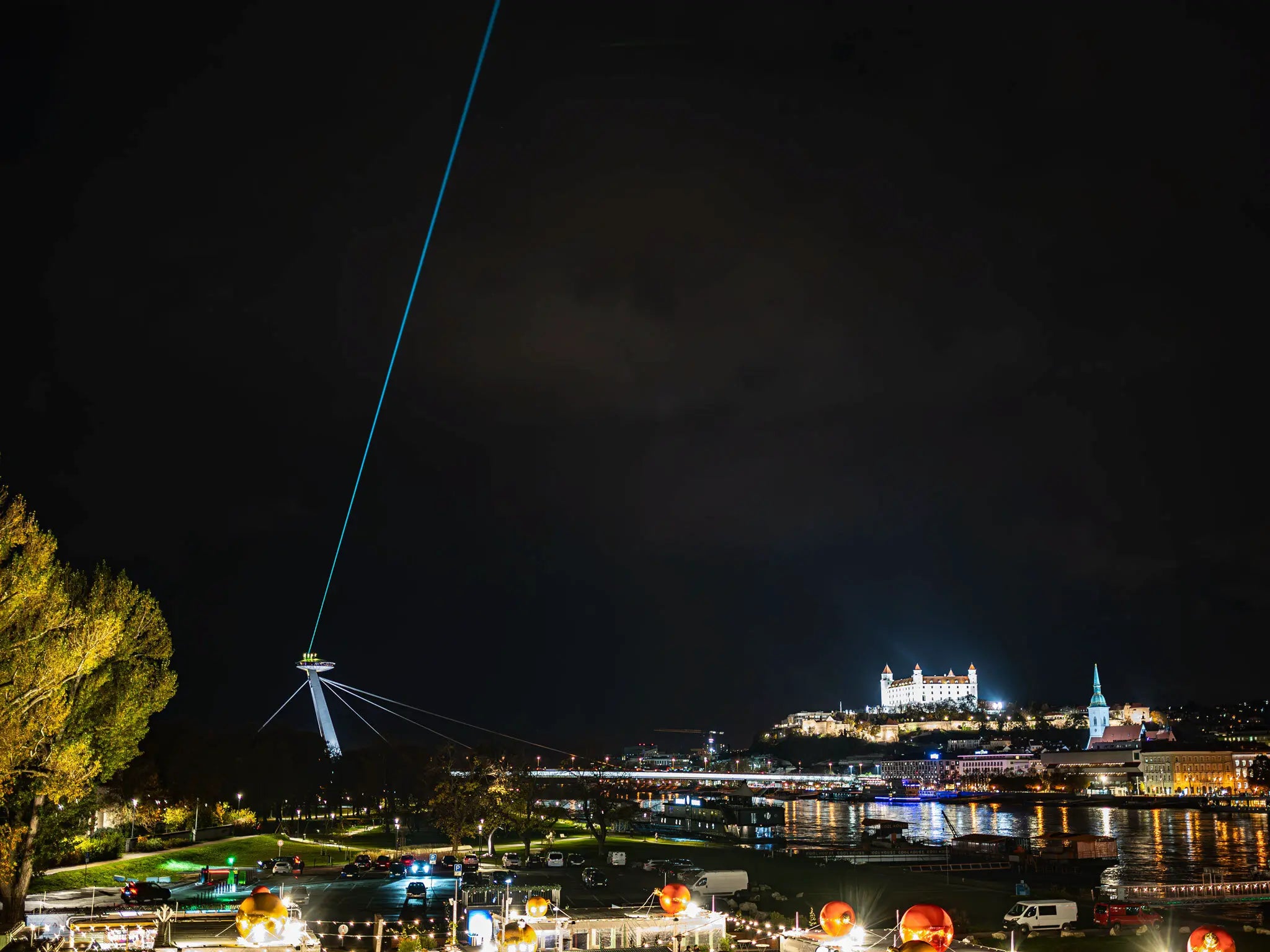

The 2nd generation of Architect high-power static-beam lasers (sometimes called sky lasers or landmark lasers) is our reaction to globally increasing demand for super bright lasers. These are great for highlighting significant landmarks, structures and buildings.

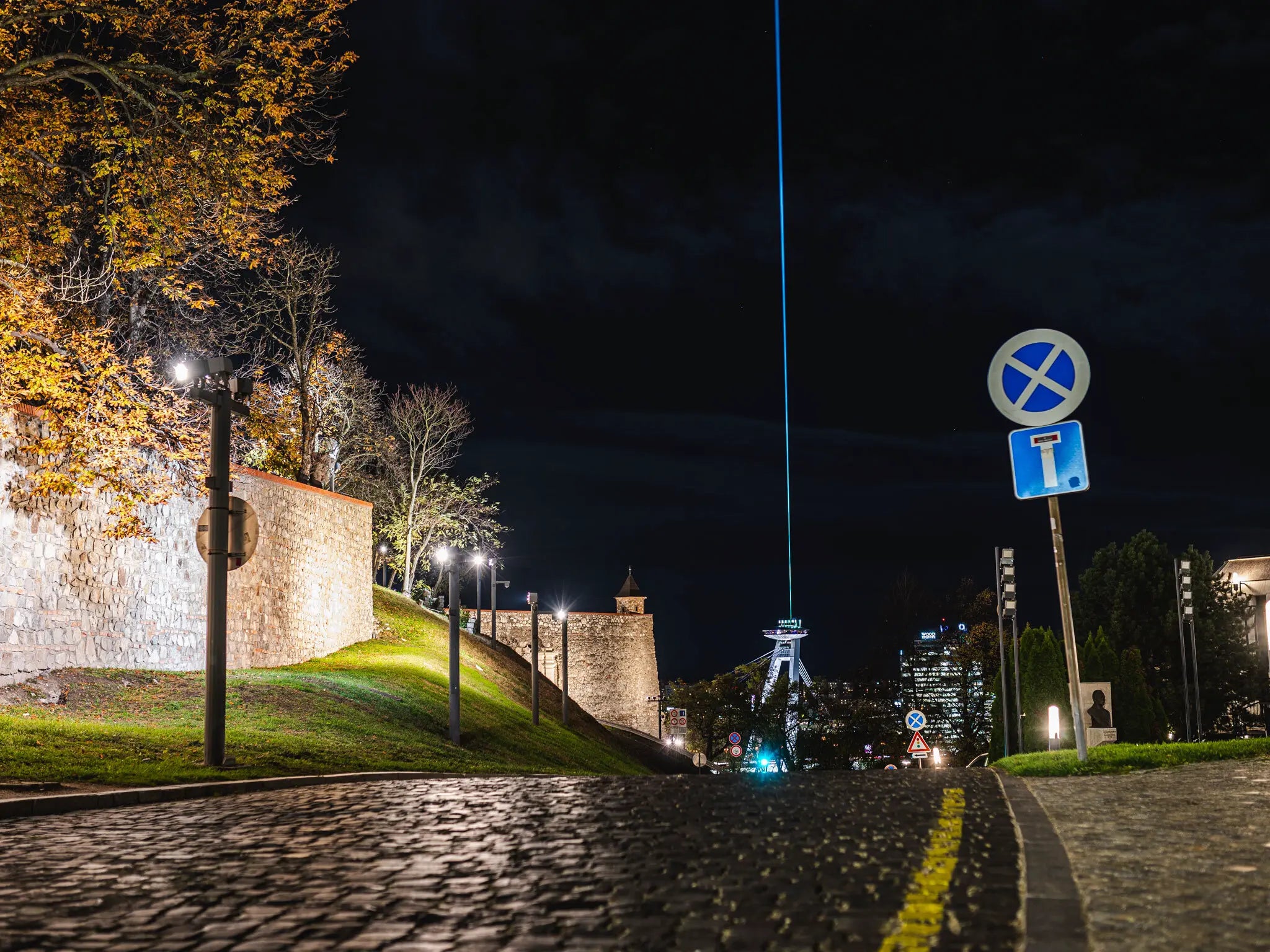

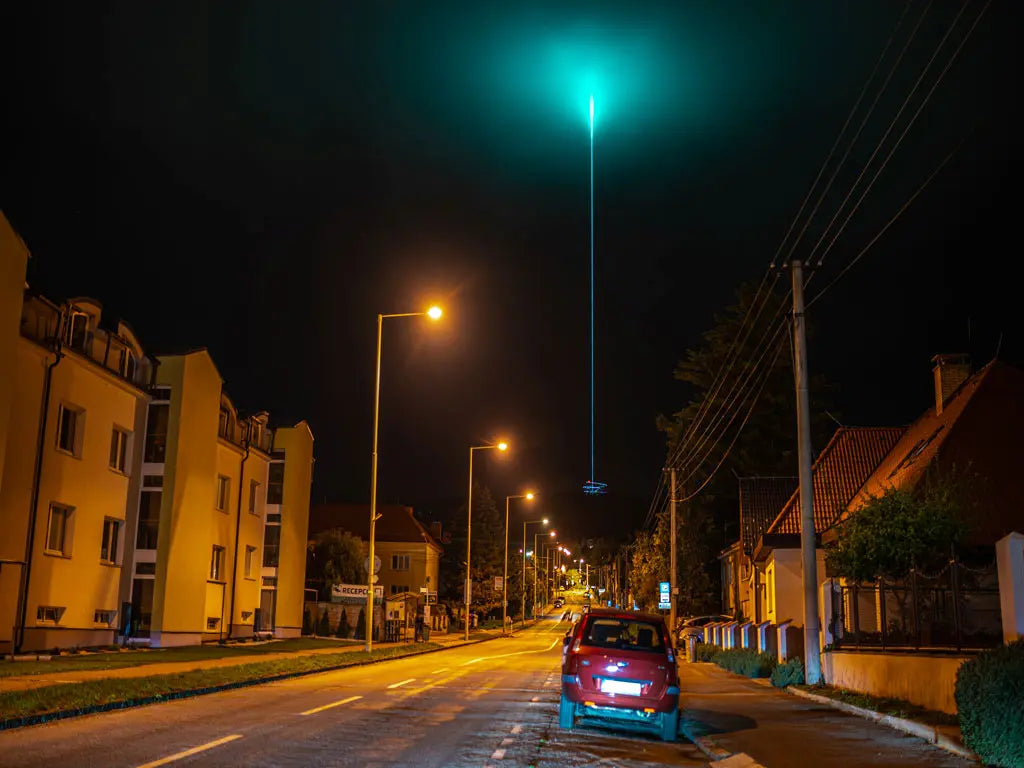

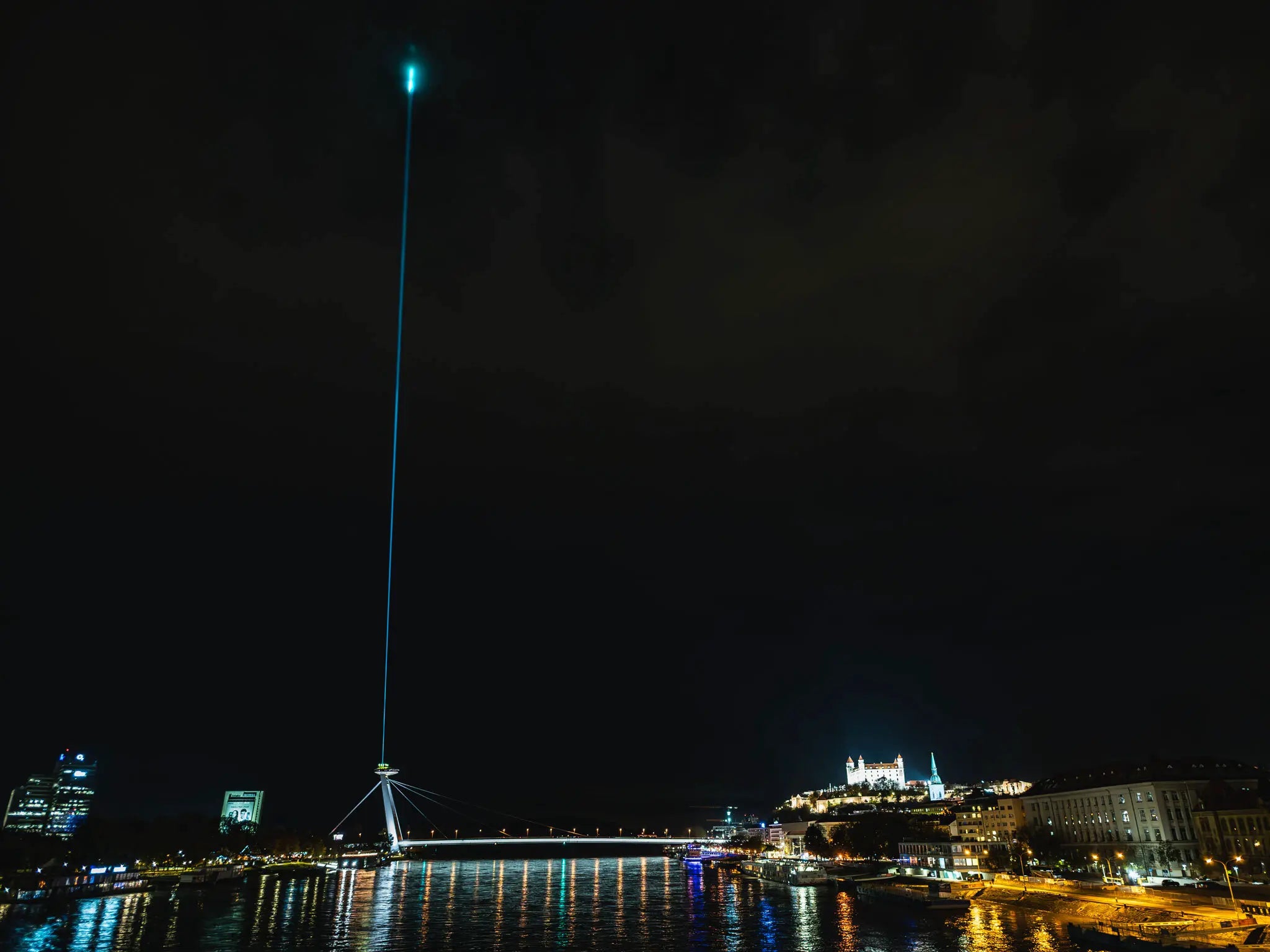

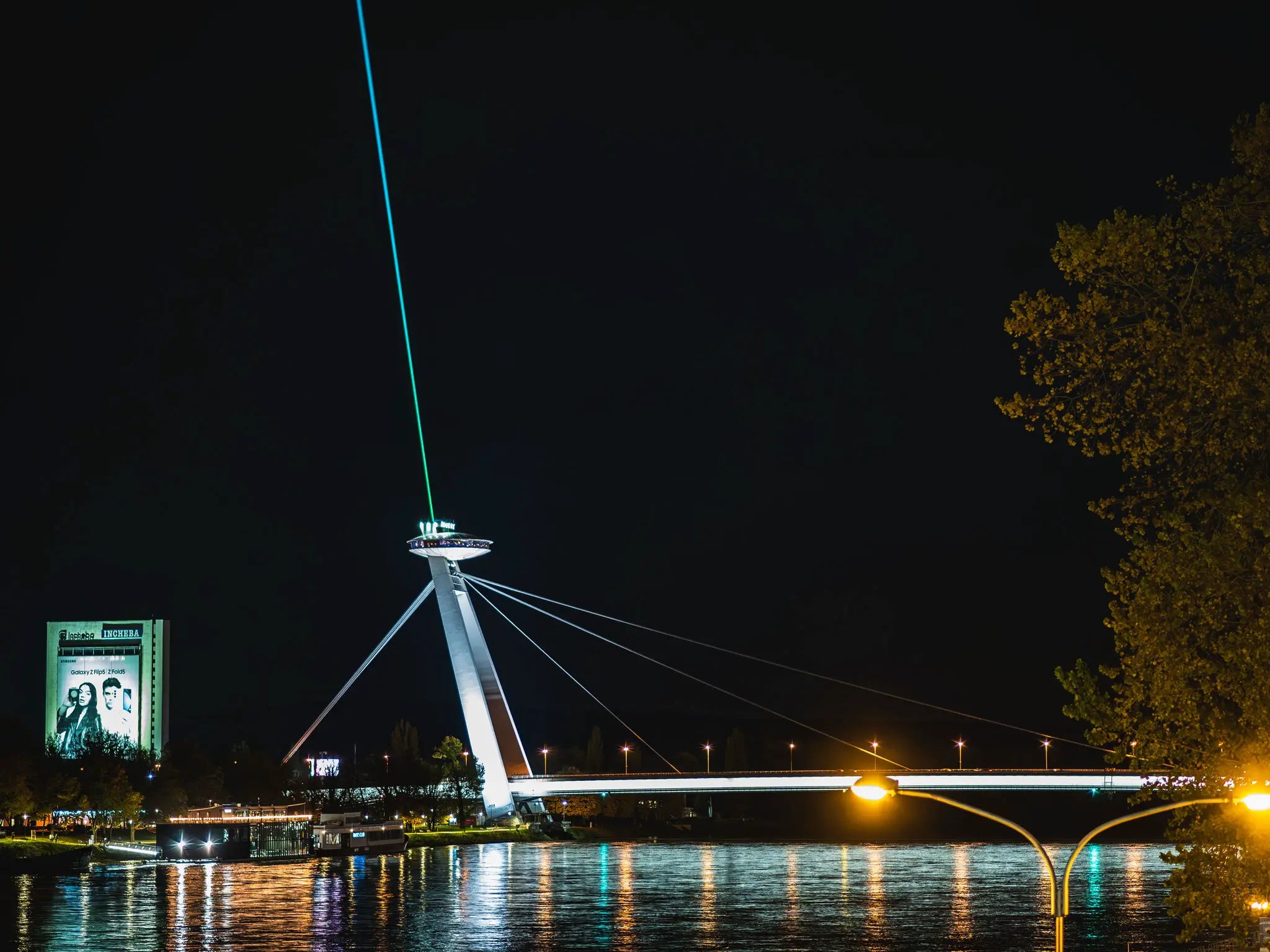

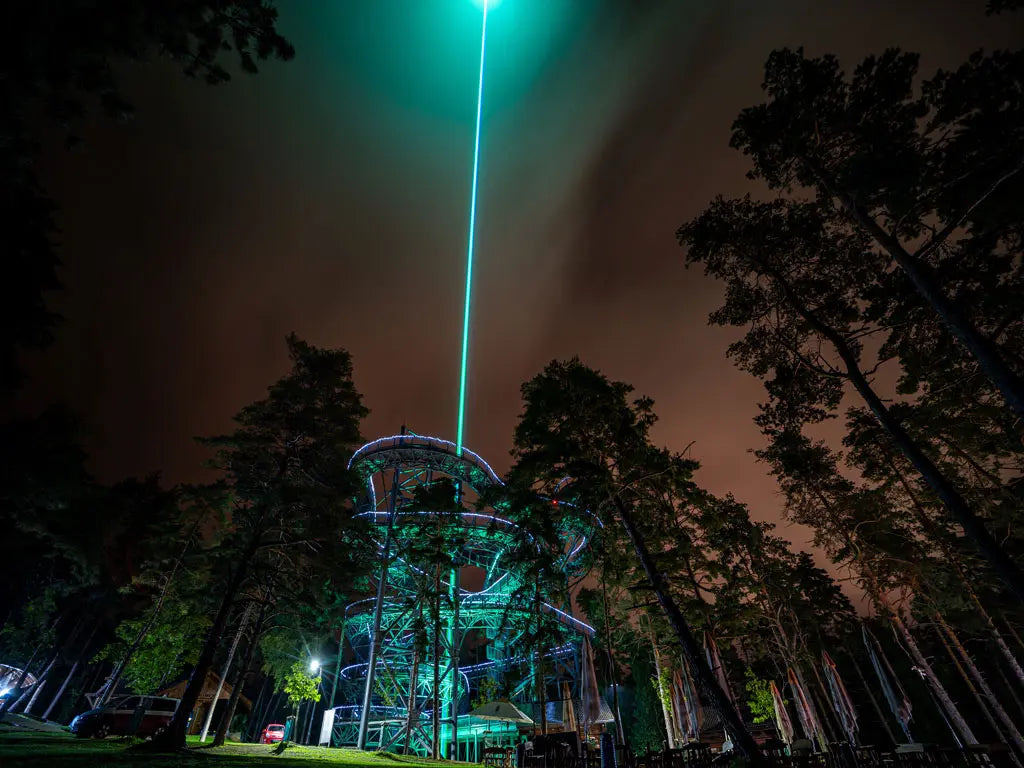

The beam coming out of the Architect systems draws attention from many miles away. It adds a great deal of sublimity to already majestic nature-made, or human-made objects, making them even more unique, appealing and desirable.

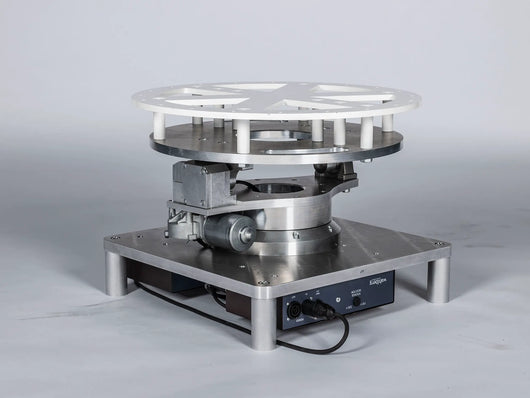

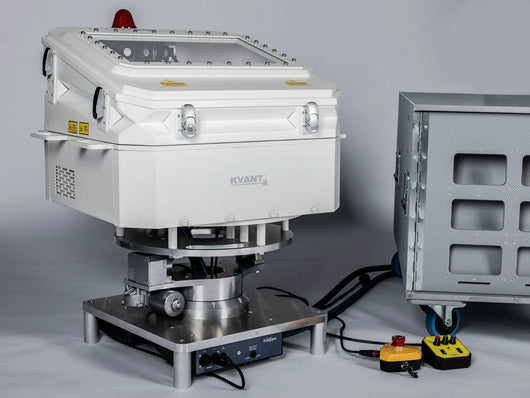

The optional DMX-controlled heavy-duty platform offers a 350-degree pan and 126-degree tilt of the whole Architect fixture, allowing the beam to be moved and scanned across the sky.
Product videos
Specifications
Semiconductor laser diode | IP65 | Full-colour RGB sky laser
Architectural installations | Landmark and Sky illumination

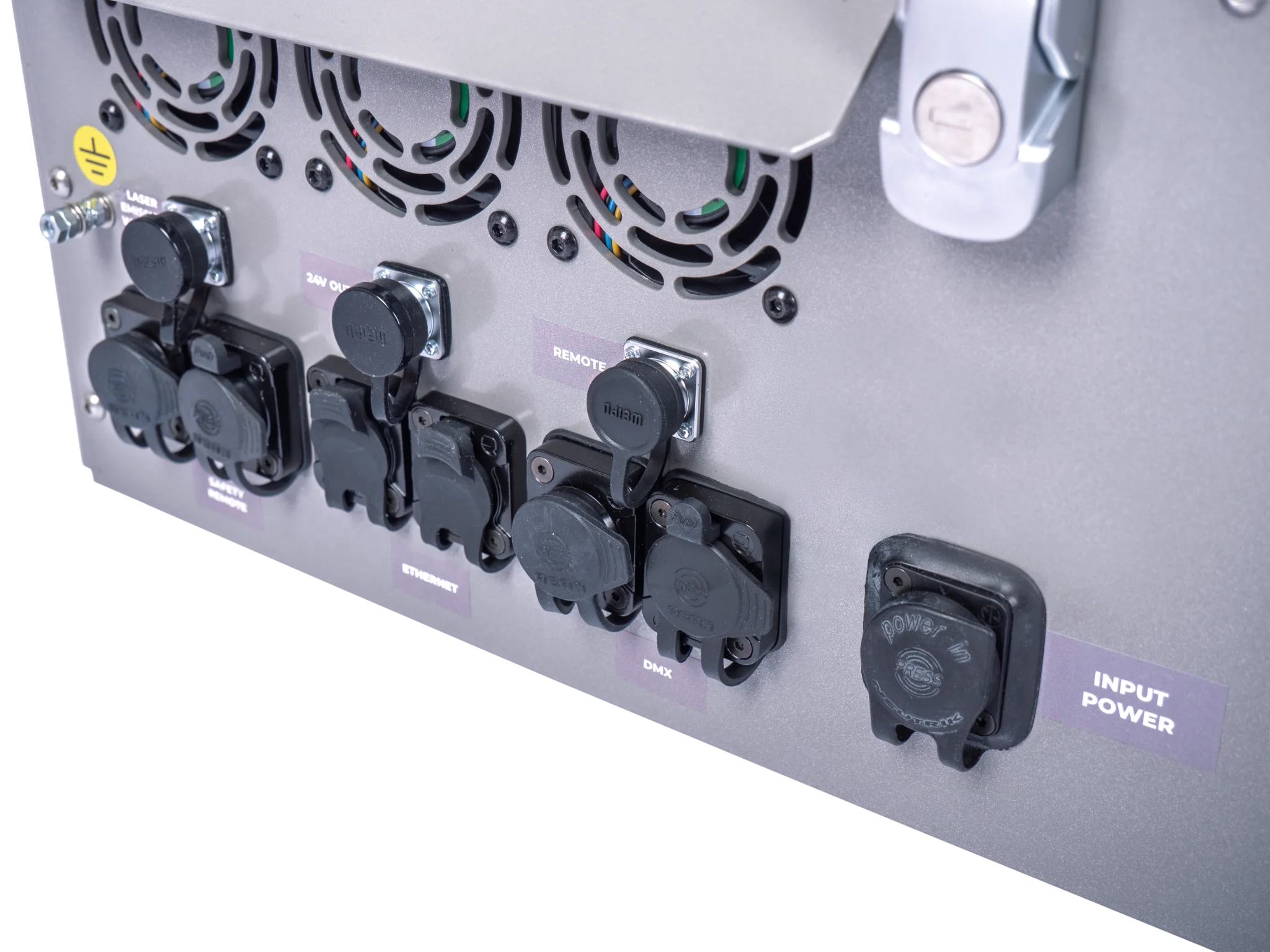

FB4 [ArtNet, DMX] / Manual via supplied remote control box | Dimming 100-0%
EN 60825-1
80 [laser projector] | 46 [chiller]
640 x 574 x 682 [laser projector] | 686 x 399 x 483 [chiller]
152 | 188 | 146
637 | 525 | 465
400 x 400
3.4 [full angle, averaged value]
Single beam output | Pan & tilt possible with the optional DMX platform

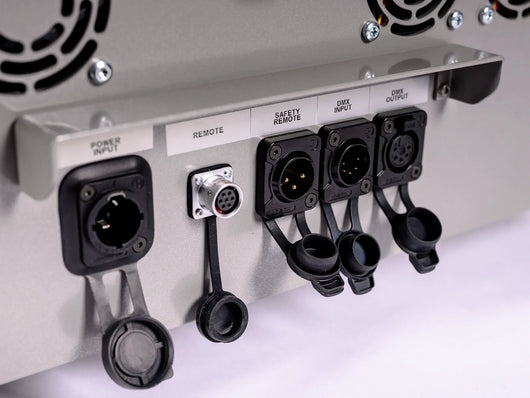

100-240/50-60Hz | Neutrik powerCON TRUE1 [laser projector] | 200-230/50-60Hz [chiller]
< 2,000 W [laser projector] | < 1,600 W [chiller]
5-40 [full power output at 5-35]
Chiller, 10M Water supply hoses, 2x Heavy-duty flight case, 10M AC power cable, 10M Control signal cable, 0-5 Volt RGB controller, E-STOP Remote with 10M 3-pin XLR cable, Set of 2 safety keys, USB memory stick with the user manual, QC certificate.

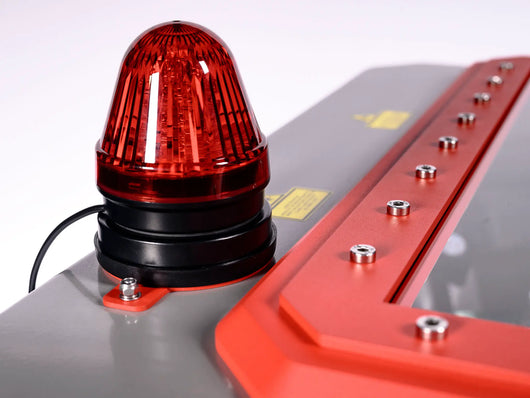

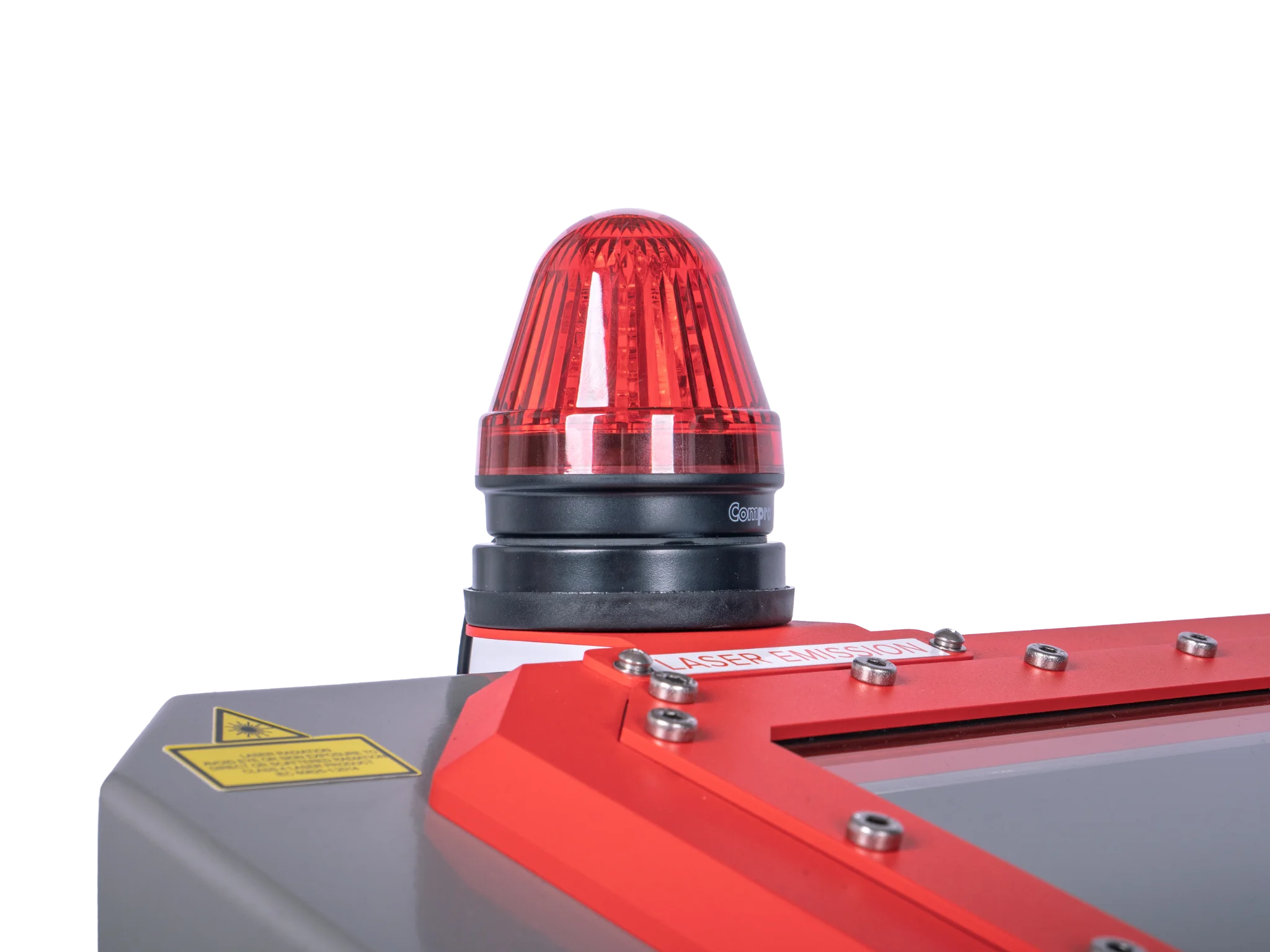

Emission warning beacon, emission delay, magnetic interlock, electronic shutter, Emergency STOP system with keyed remote and manual RESTART button.
130,200
Water + 15% glycol, 6-10 l/min, 20°C

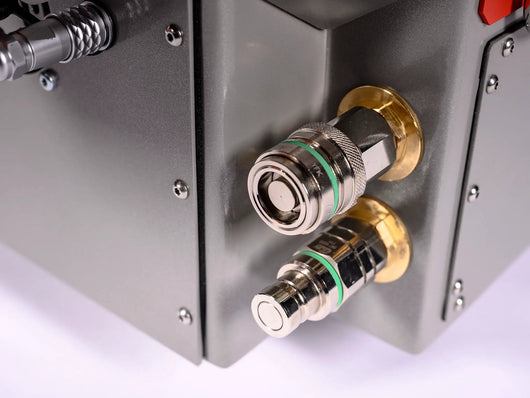

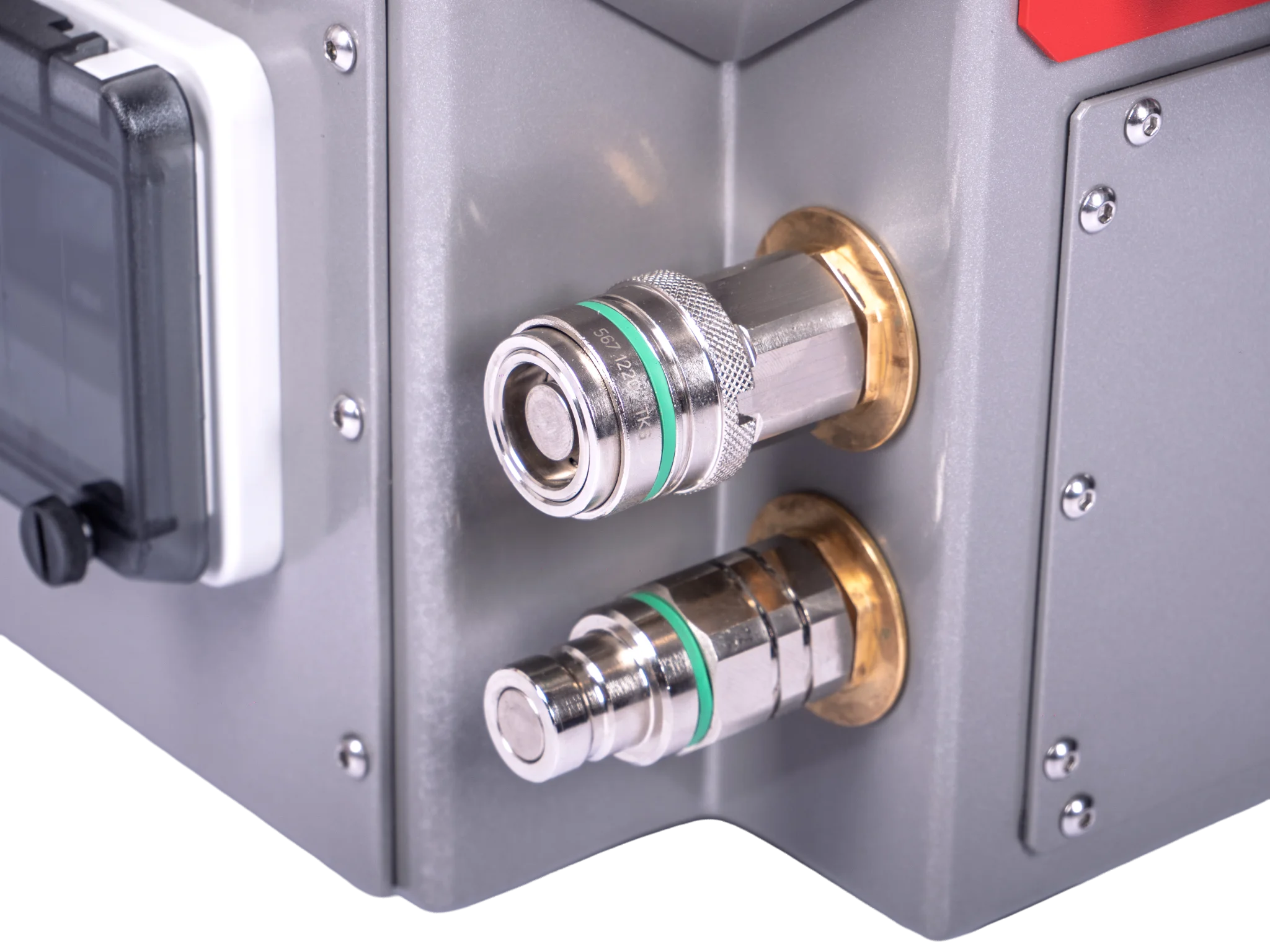

CEJN series 567
Included with

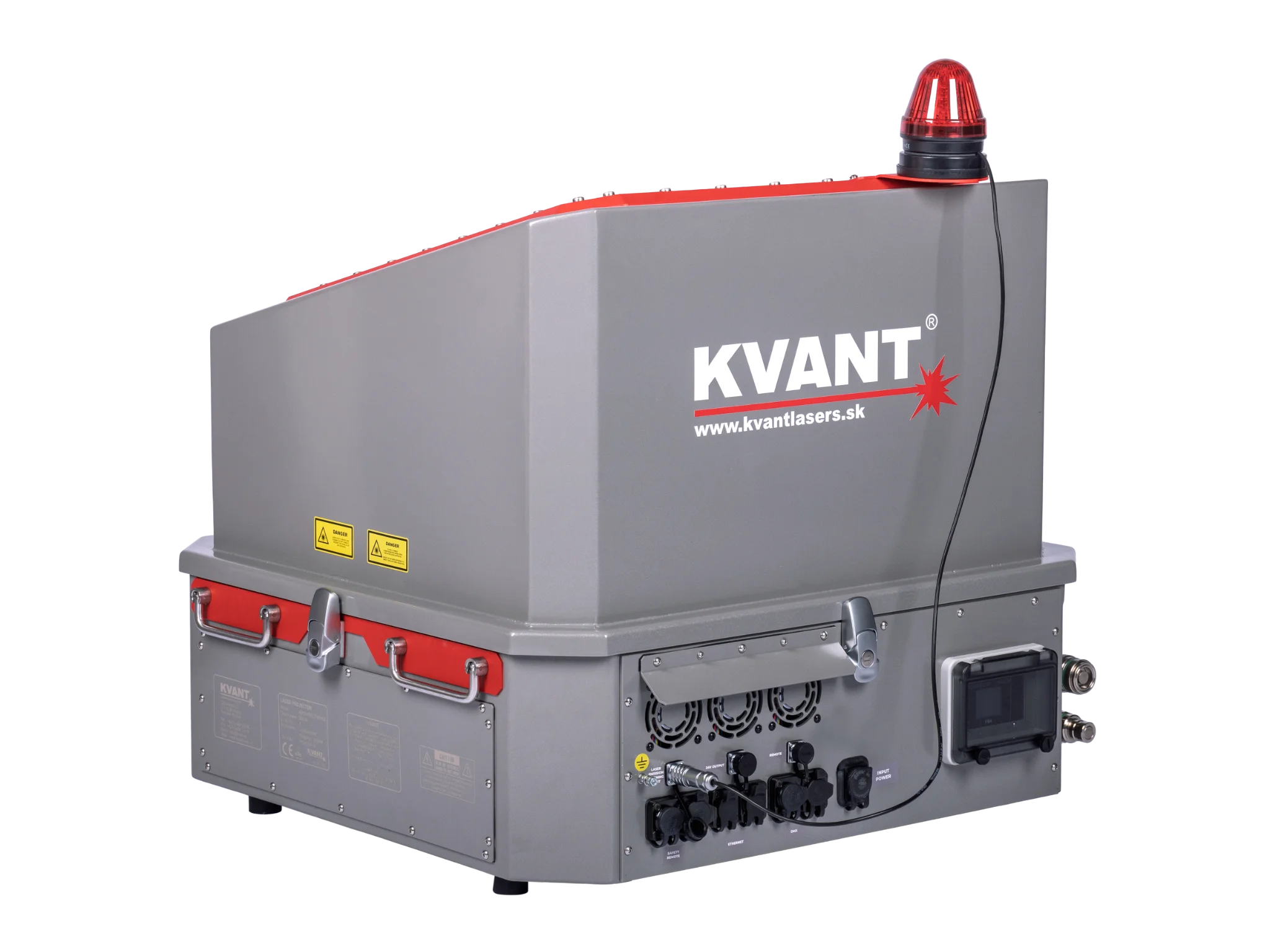

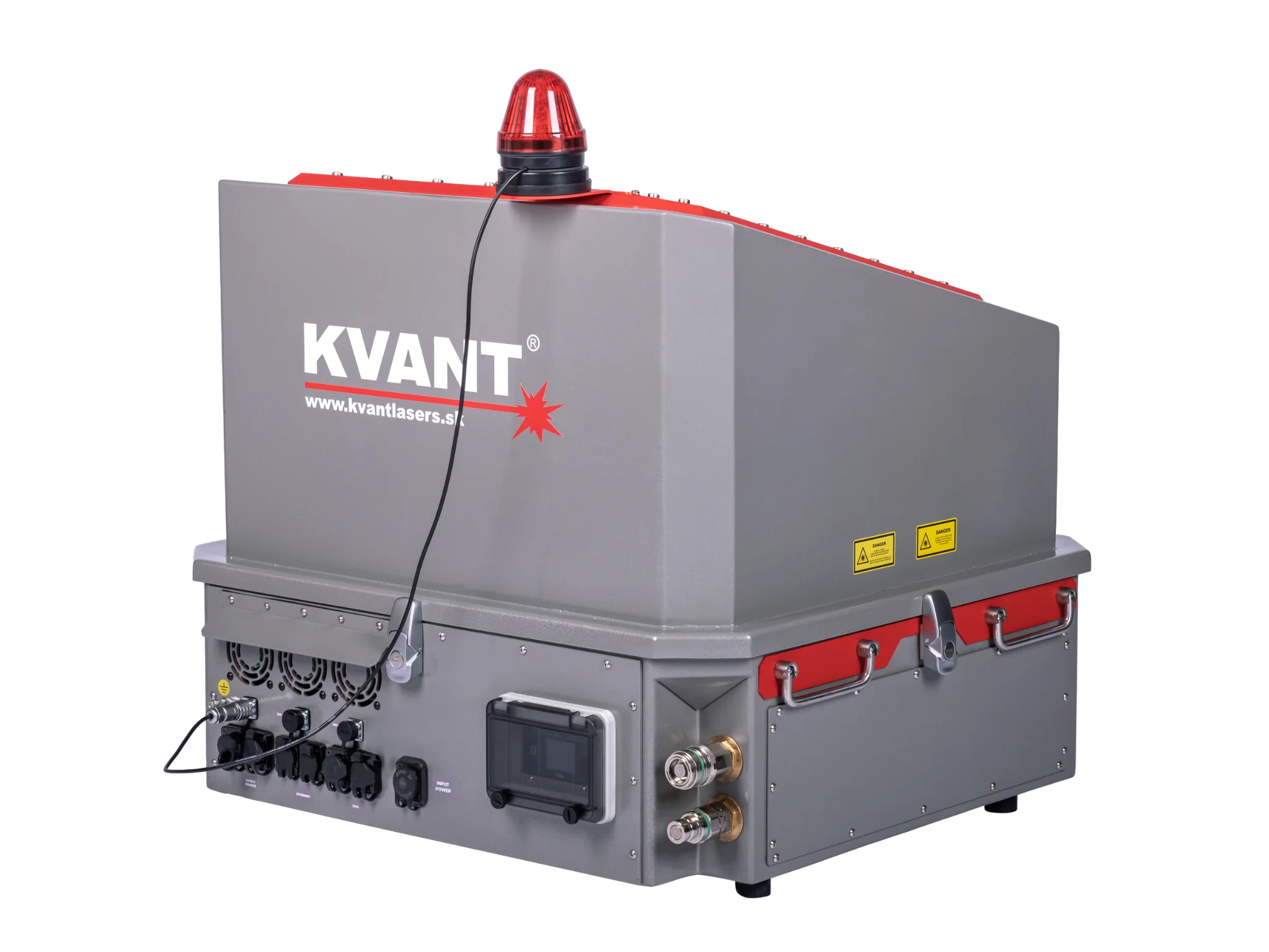

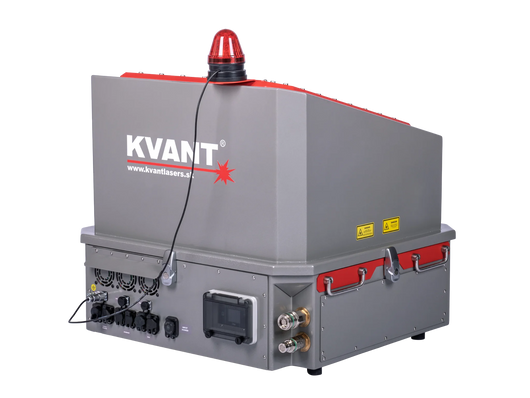

Laser projector
Chiller & hoses
AC power cable
E-stop with XLR cable
RGB controller

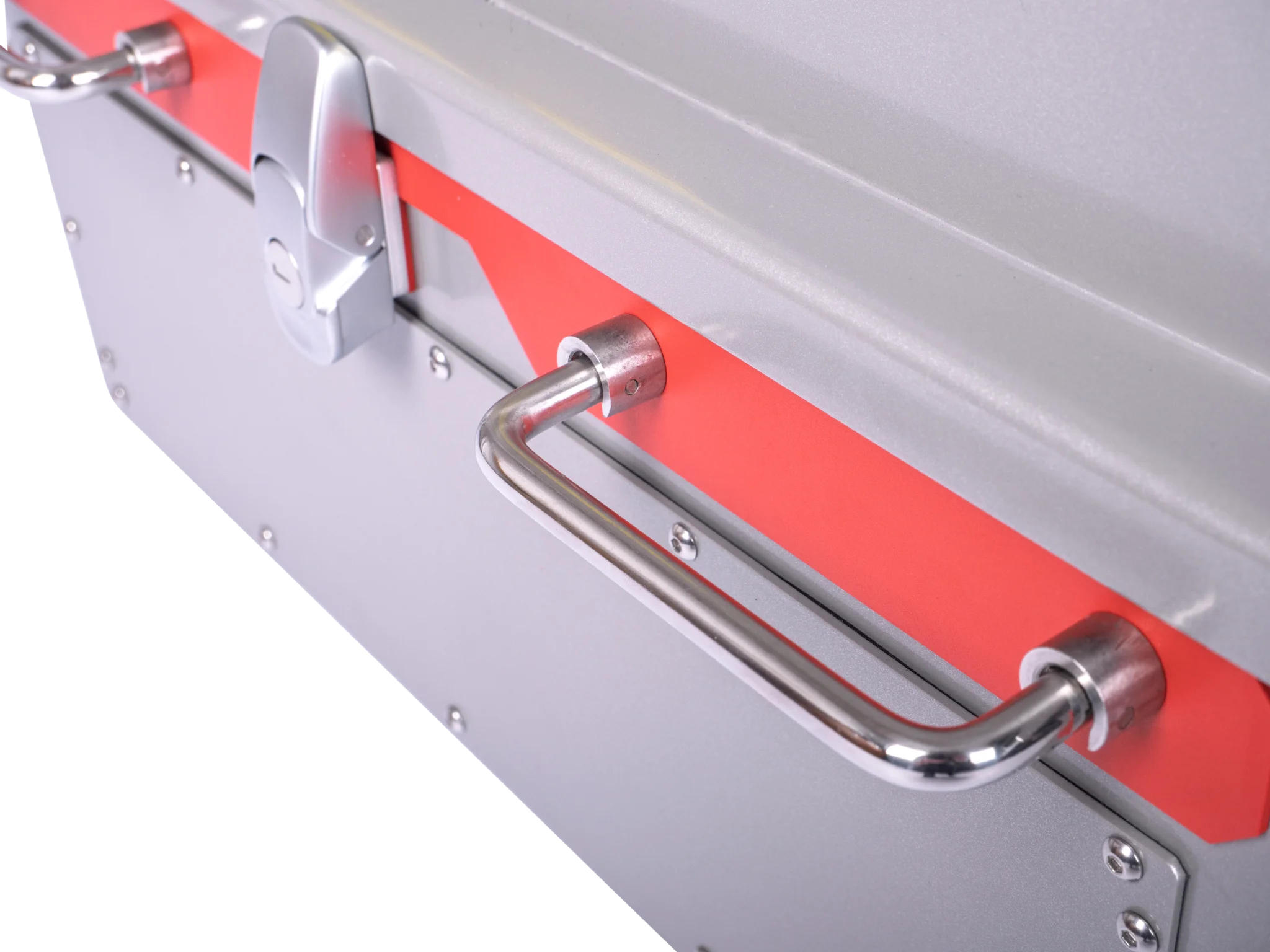

Heavy-duty flight case
Safety keys
USB drive with manual
QC certificate
