Beam Analyzer for Laser Beam Measurement

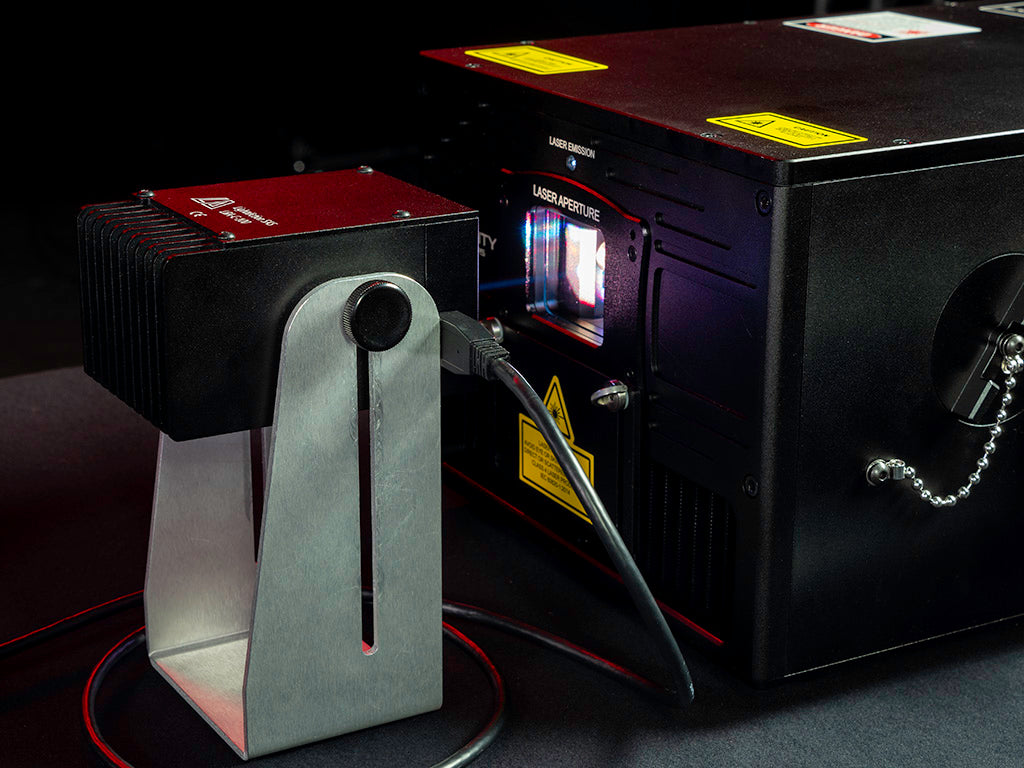

Laser setup, testing the beam quality.

In the ever-evolving world of technology, lasers have become indispensable across various industries, from manufacturing to entertainment. Ensuring the quality and accuracy of laser beams is paramount for each application, which brings us to an exciting new tool - the Beam Analyzer.

Unraveling the Technology

Beam Analyzer for Lasers

This compact measurement device is specifically designed to handle continuous, high-power laser beams, measuring the divergence and RGB alignment of the laser source with very high accuracy.

Think of the Beam Analyzer as a truth detector - it analyzes a laser beam to measure the main specifications that qualify the quality of the beam. It operates on an angular measurement method, removing the need to depend on input beam diameter or the distance between the measuring device and the laser source. With a remarkable resolution of 0.01mrad, it meticulously examines laser beams, offering insights into their quality and performance.

Applications

With the new Beam Analyzer, you can analyze:

  • Divergence Measurement: Assess the divergence of laser beams for each color and simultaneously for all colors, providing crucial data for optimizing beam quality in real-time.
  • Laser Output Power Measurement: Accurately measure the power of laser beams, ensuring consistency and reliability in various operations in real-time.
  • Lens Collimation: Achieve minimal divergence in laser sources, enhancing precision and efficiency.
  • RGB Alignment: Seamlessly and easily align RGB laser beams for optimal performance with a more digitized, automated workflow.

Software

The Beam Analyzer comes equipped with user-friendly software, making measurements quick and effortless in a digital workflow. Available on both Windows 10 and 11, the software is regularly updated to meet user requirements. With a convenient USB 3.0 connection and support for English and French.

Learn More about the Beam Analyzer

With the Beam Analyzer, precision and performance in laser applications can reach new heights. Whether you're fine-tuning laser systems for industrial purposes, ensuring the laser matches the specs you were promised, or perfecting laser alignment for your next show, this device empowers you to achieve exceptional results.

Learn more about the Beam Analyzer Access the guide on how to use the Beam Analyzer
